2025 Harley-Davidson CVO™ Pan America®

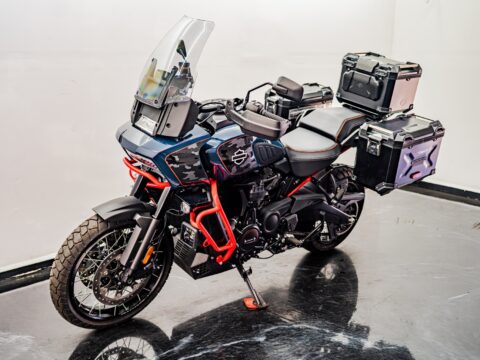

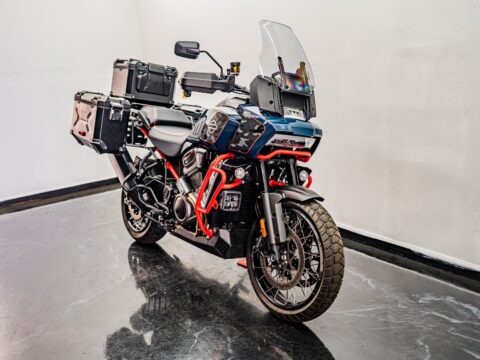

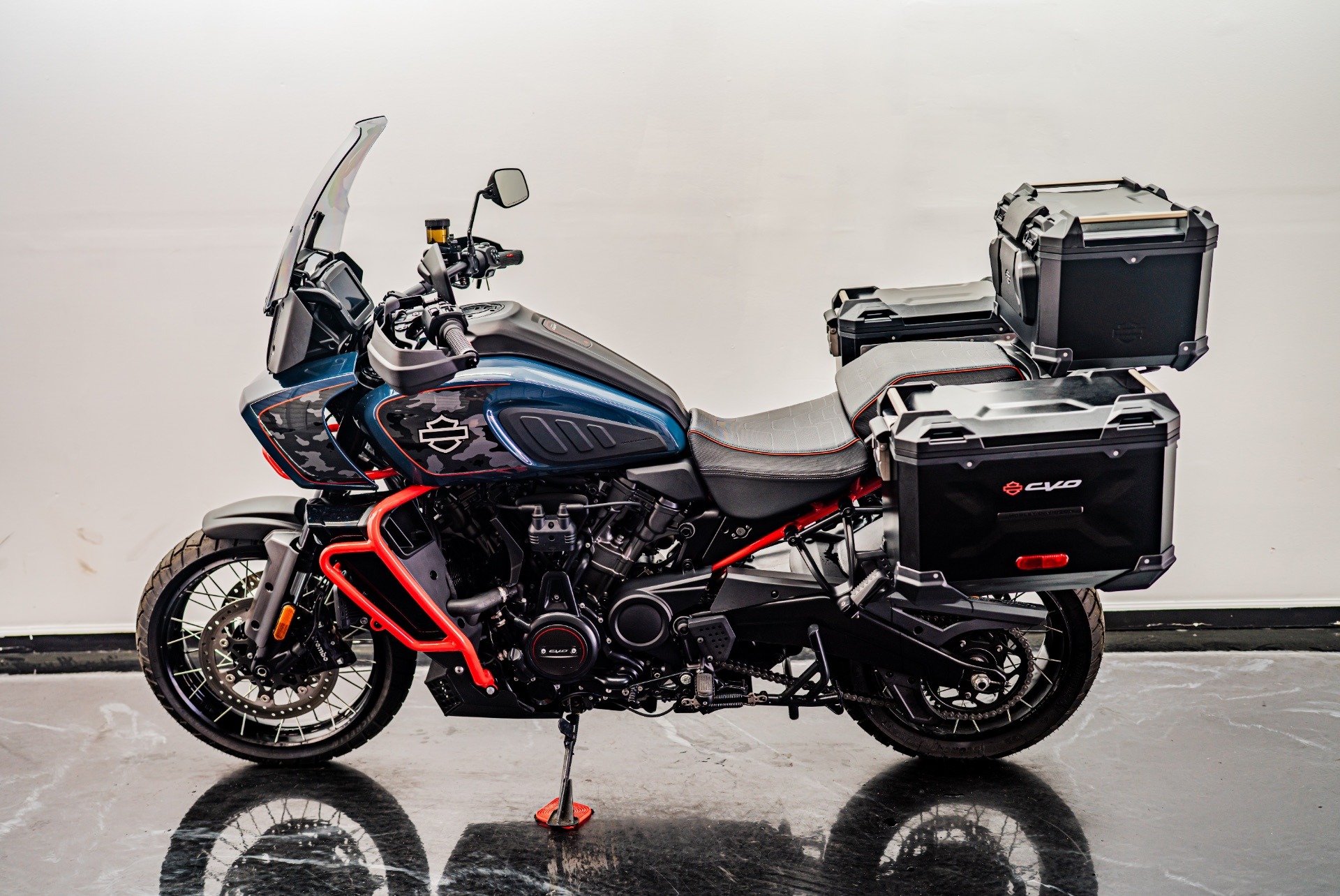

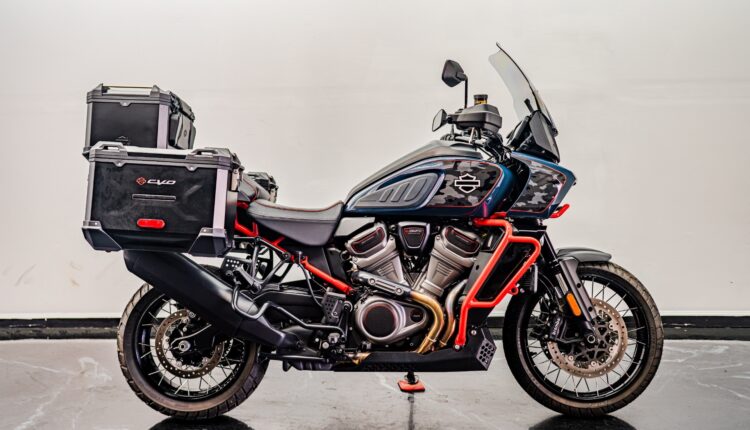

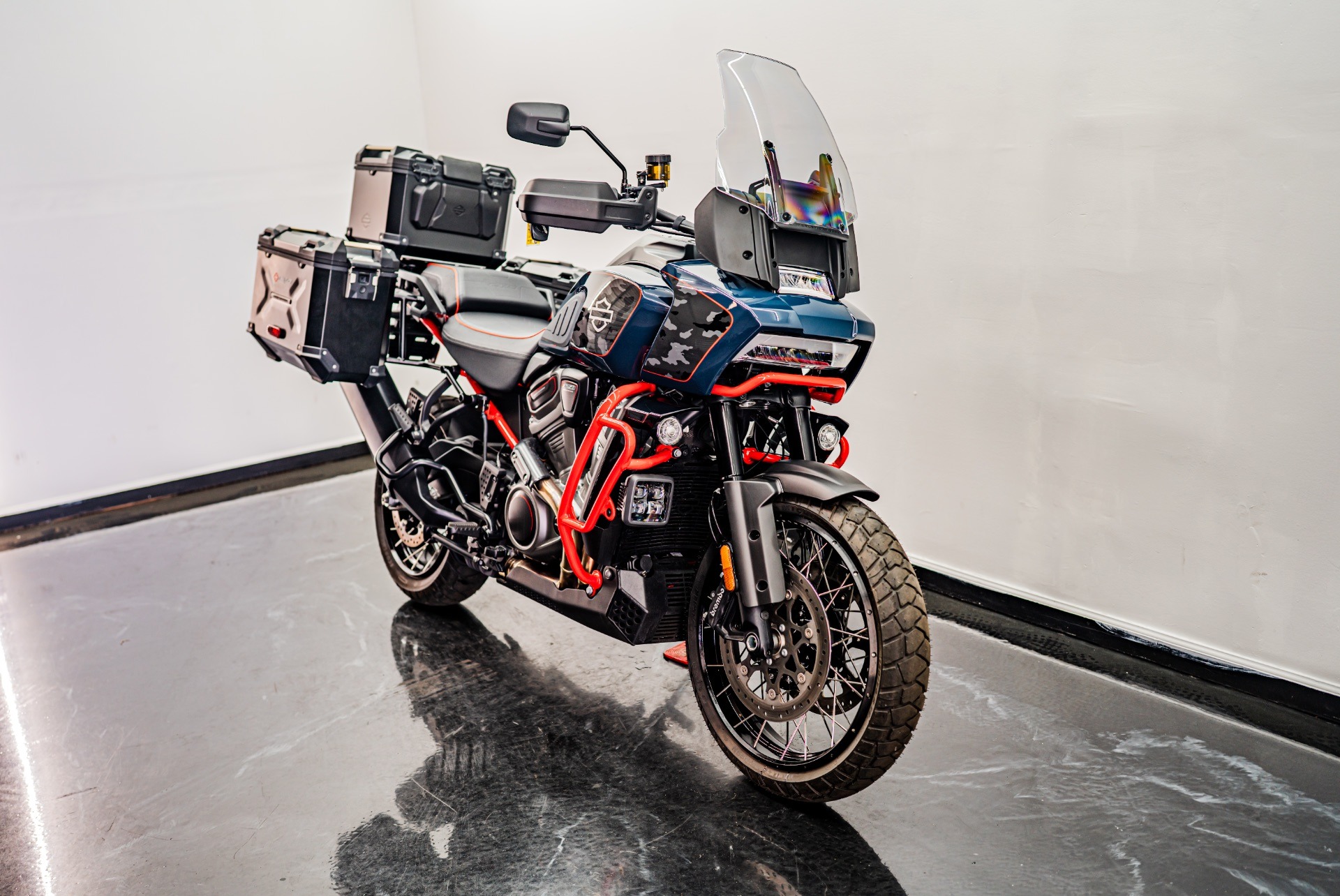

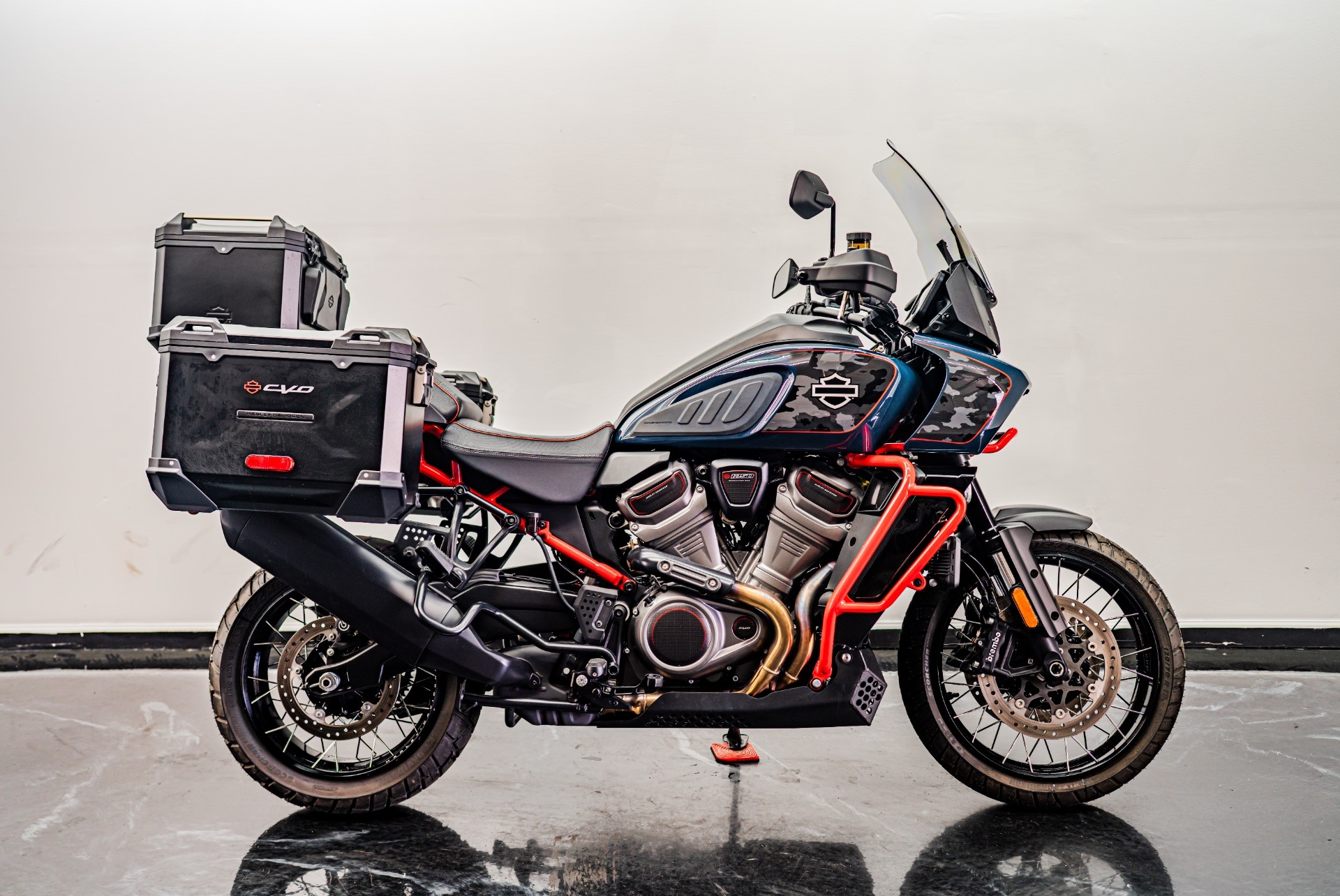

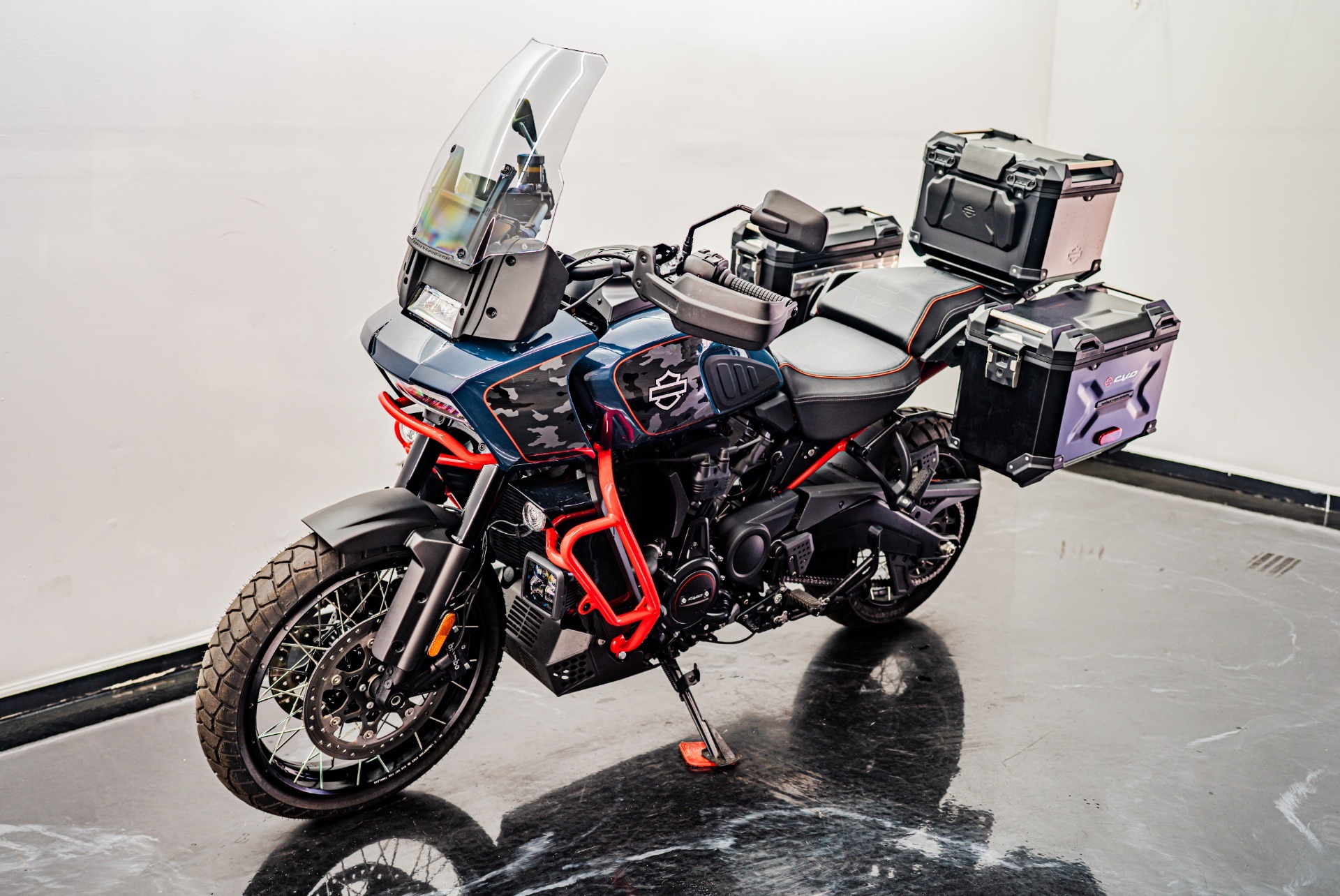

2025 Harley-Davidson CVO™ Pan America® – The Ultimate Factory-Loaded Adventure Weapon

Leave ordinary completely behind. The 2025 Harley-Davidson CVO™ Pan America® is the most functional, go-anywhere motorcycle in Harley-Davidson’s lineup—reengineered by Custom Vehicle Operations to deliver world-class luxury and rugged, top-tier capability straight from the showroom floor. If you want a bike that dominates asphalt, crushes gravel, and looks absolutely unmatched doing it, this is your machine.

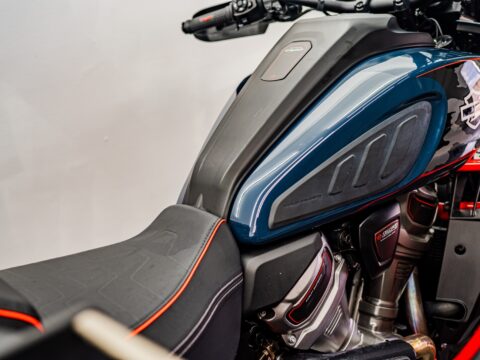

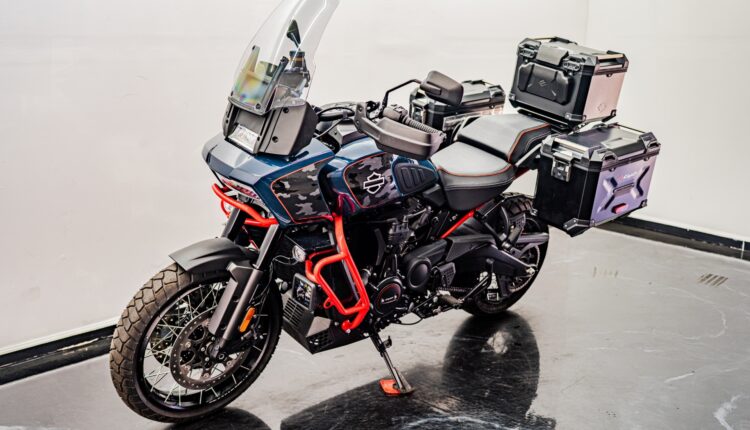

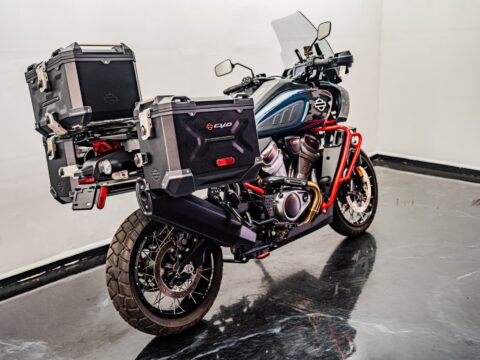

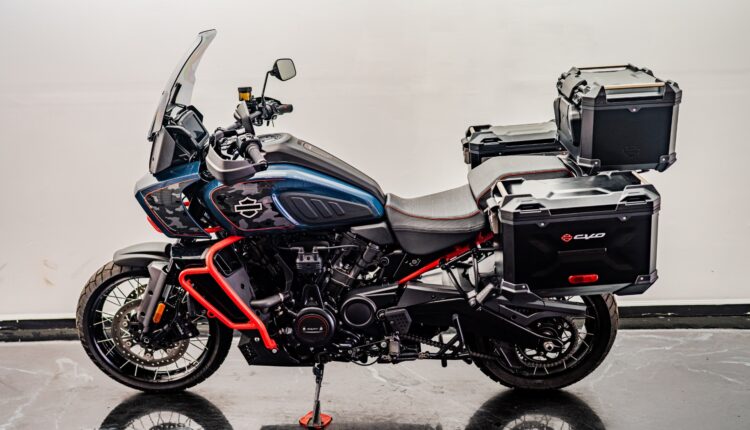

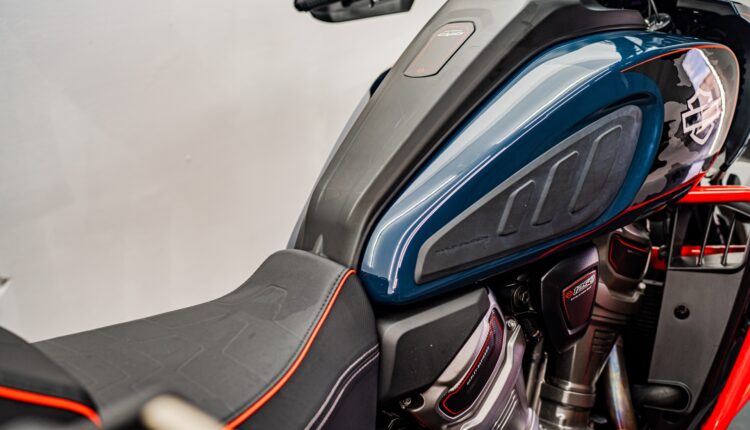

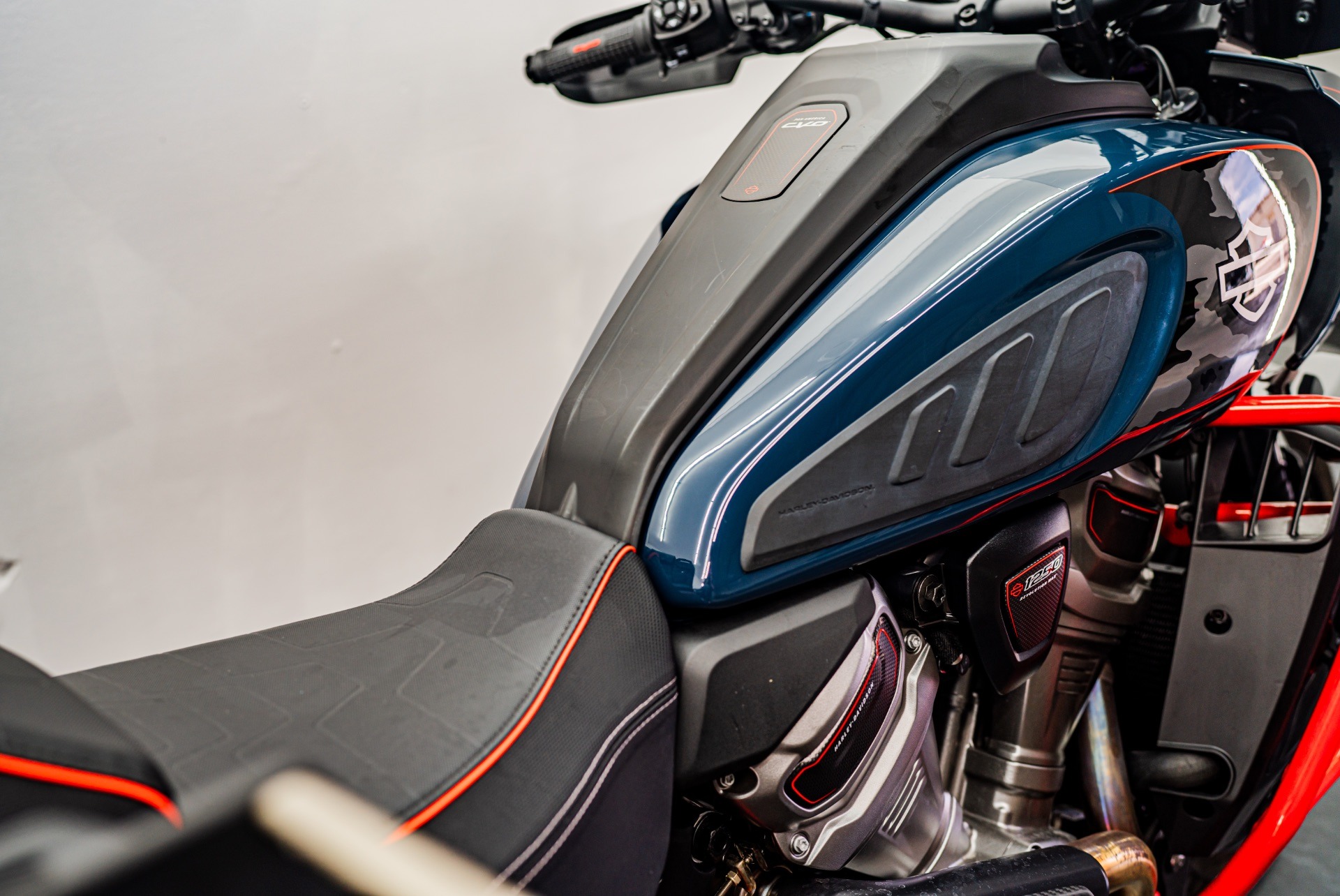

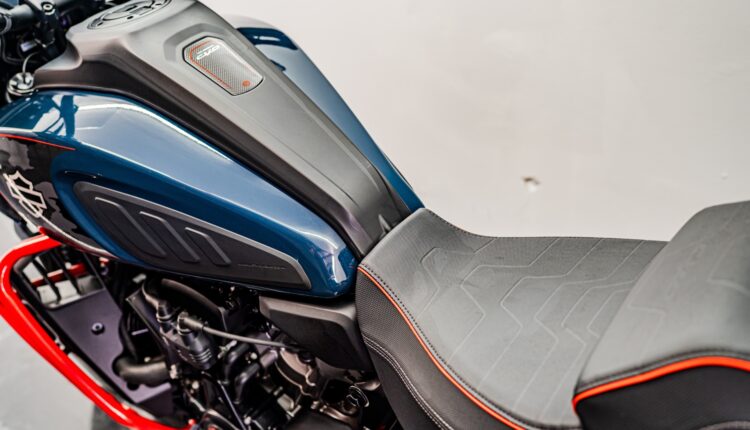

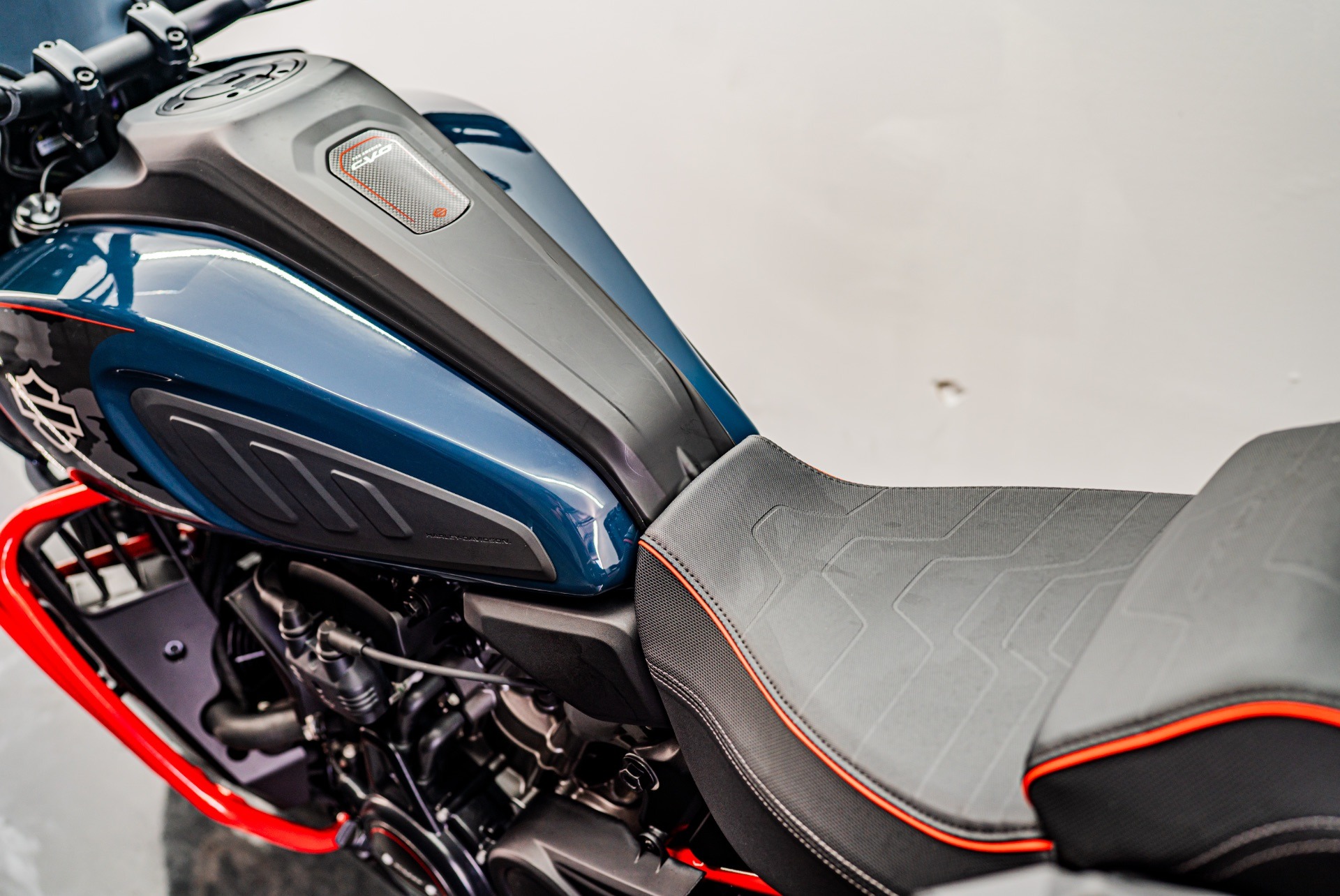

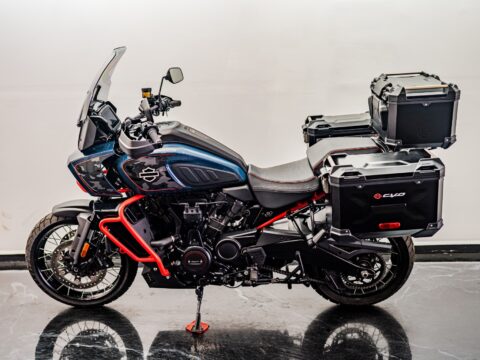

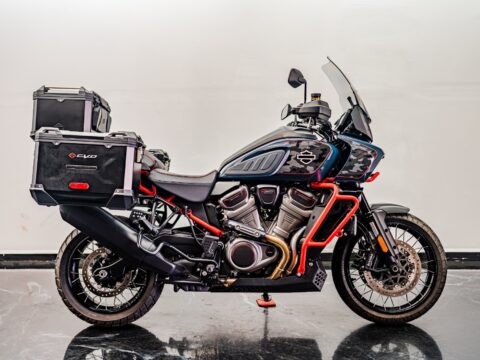

Drenched in premium Carbon Blue custom factory paint with CVO™-unique finishes, this immaculate, pre-owned adventure tourer has only 680 miles on the odometer. It is practically brand new and comes loaded to the gills with every factory-installed accessory you could ever want.

Revolution® Max Powertrain & Performance

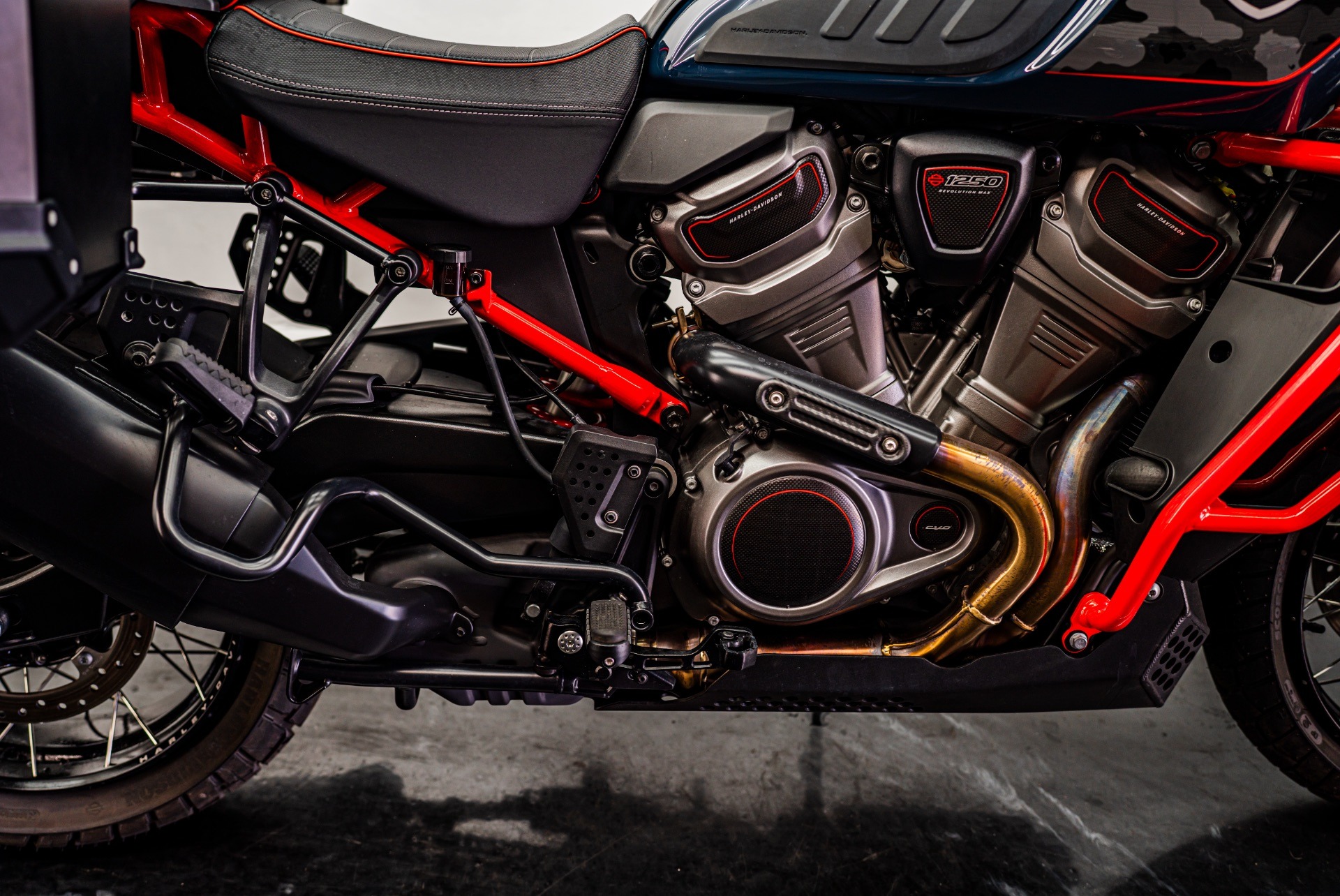

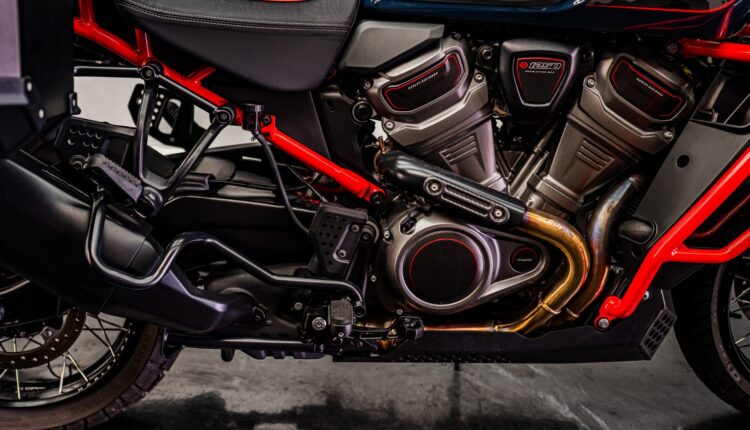

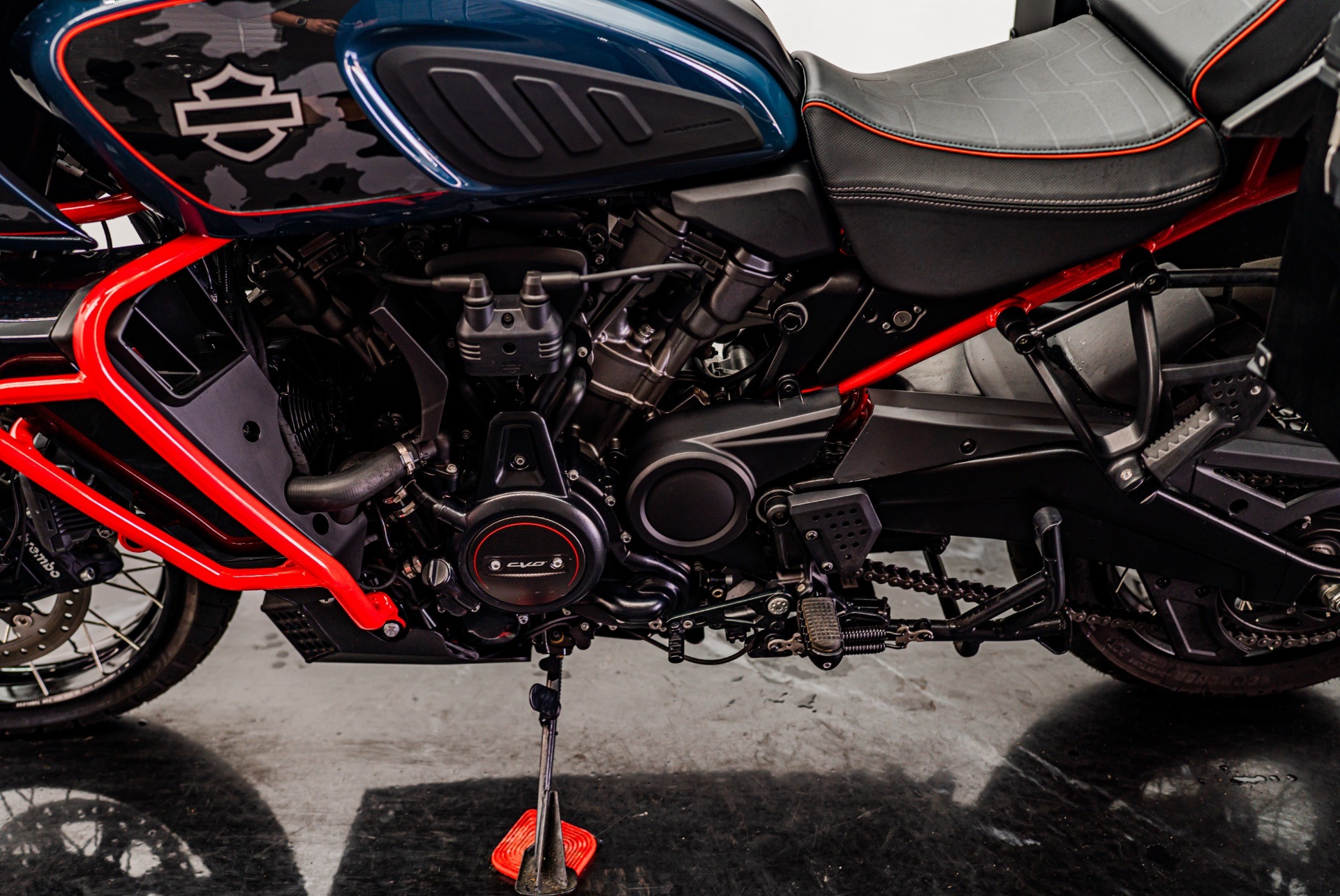

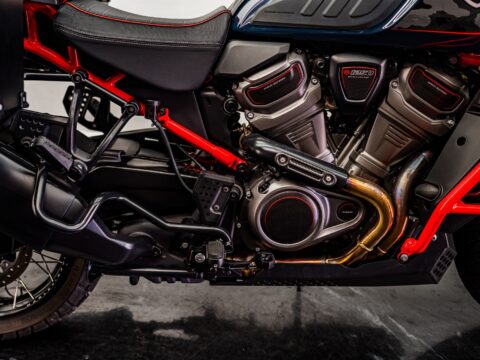

• Revolution Max 1250 Engine: A liquid-cooled, structural component of the chassis that cranks out a blistering 150 horsepower and 95 ft-lbs of torque for effortless acceleration, even when fully loaded with gear and a passenger.

• Intake & Exhaust VVT: Variable Valve Timing widens the overall powerband, maximizing low-end torque for technical off-road climbs and high-RPM horsepower for open-highway cruising.

• Dual-Direction Quick Shifter (Screamin’ Eagle Quickshifter): Allows for lightning-fast, clutchless upshifts and downshifts to keep your momentum uninterrupted.

Next-Gen Off-Road Technology & Innovation

• Adaptive Ride Height (ARH): The ultimate confidence booster. This industry-leading semi-active suspension automatically lowers the seat height when you come to a stop so you can easily plant both feet, then raises to optimal ride height once you start moving.

• Electronically Adjustable Semi-Active Suspension: 47mm inverted front forks and a linkage-mounted rear monoshock constantly react to vehicle speed, vertical acceleration, roll rate, and throttle position to maintain perfect compliance.

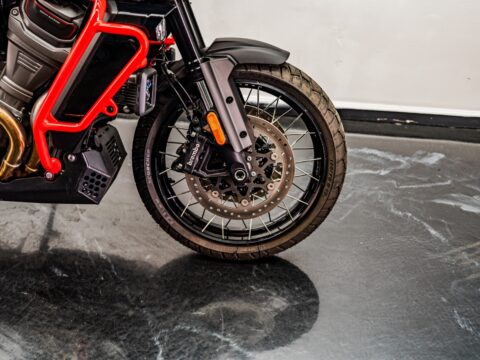

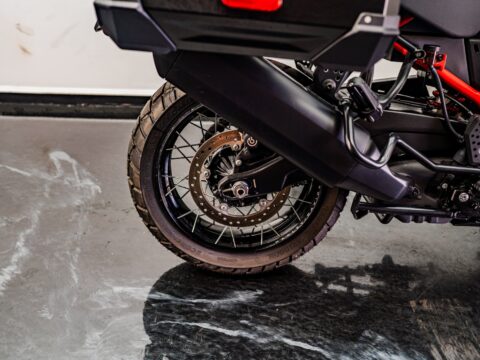

• Tubeless Laced Wheels: Premium anodized aluminum tubeless laced wheels drop weight and allow you to run aggressive, durable Michelin® Scorcher “Adventure” radial tires with the peace of mind of easy roadside plugging if needed.

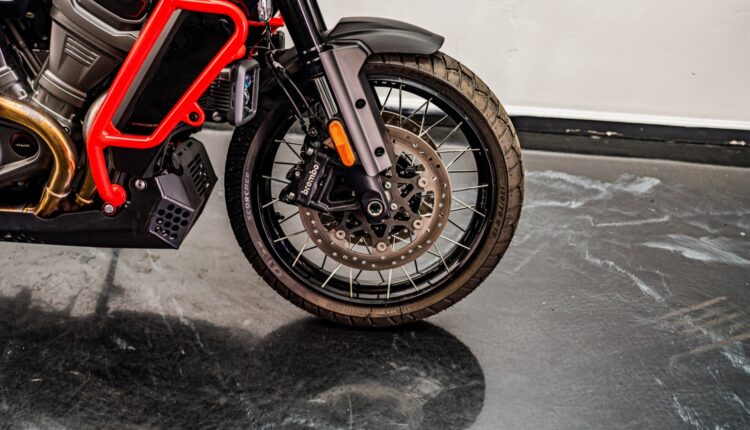

• Advanced Brembo Braking: Dual 320mm front rotors clamped by radially mounted, monoblock 4-piston calipers provide world-class stopping power.

Premium CVO™ Factory Upgrades & Comfort

• Daymaker® Adaptive LED Headlamp: Advanced 6-segment LED banking lamps automatically project extra light into corners based on the lean angle of the bike, completely illuminating the dark.

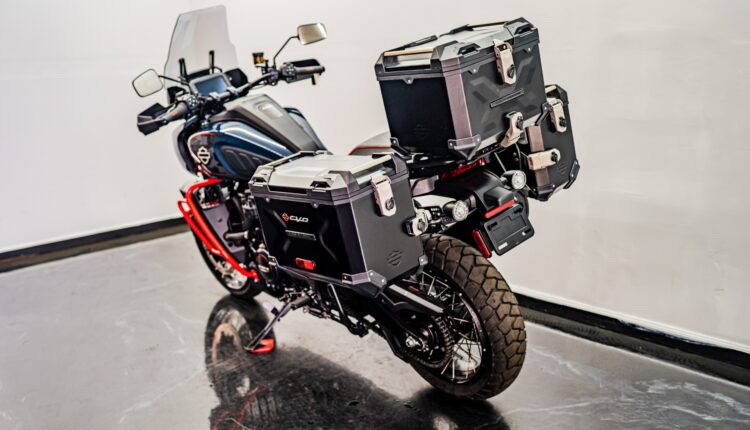

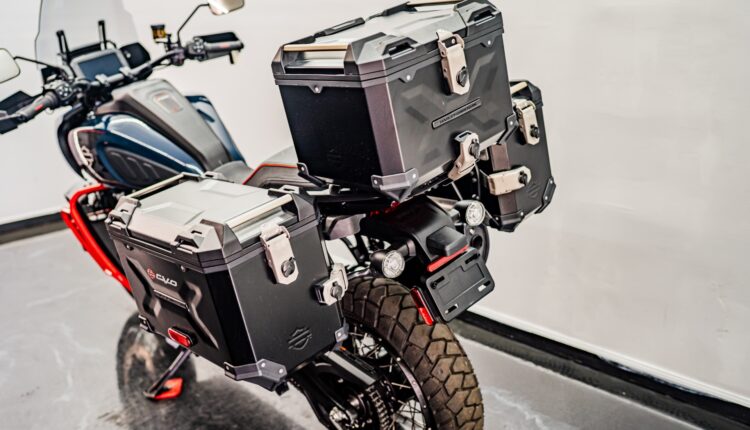

• Rugged, Durable Aluminum Luggage: Full three-piece factory hard luggage system offering a massive 4.24 cubic feet of locking cargo capacity to hold all your gear for cross-country treks.

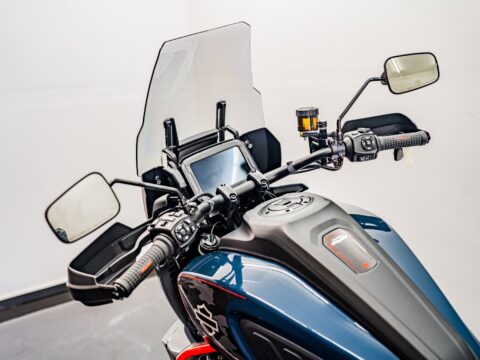

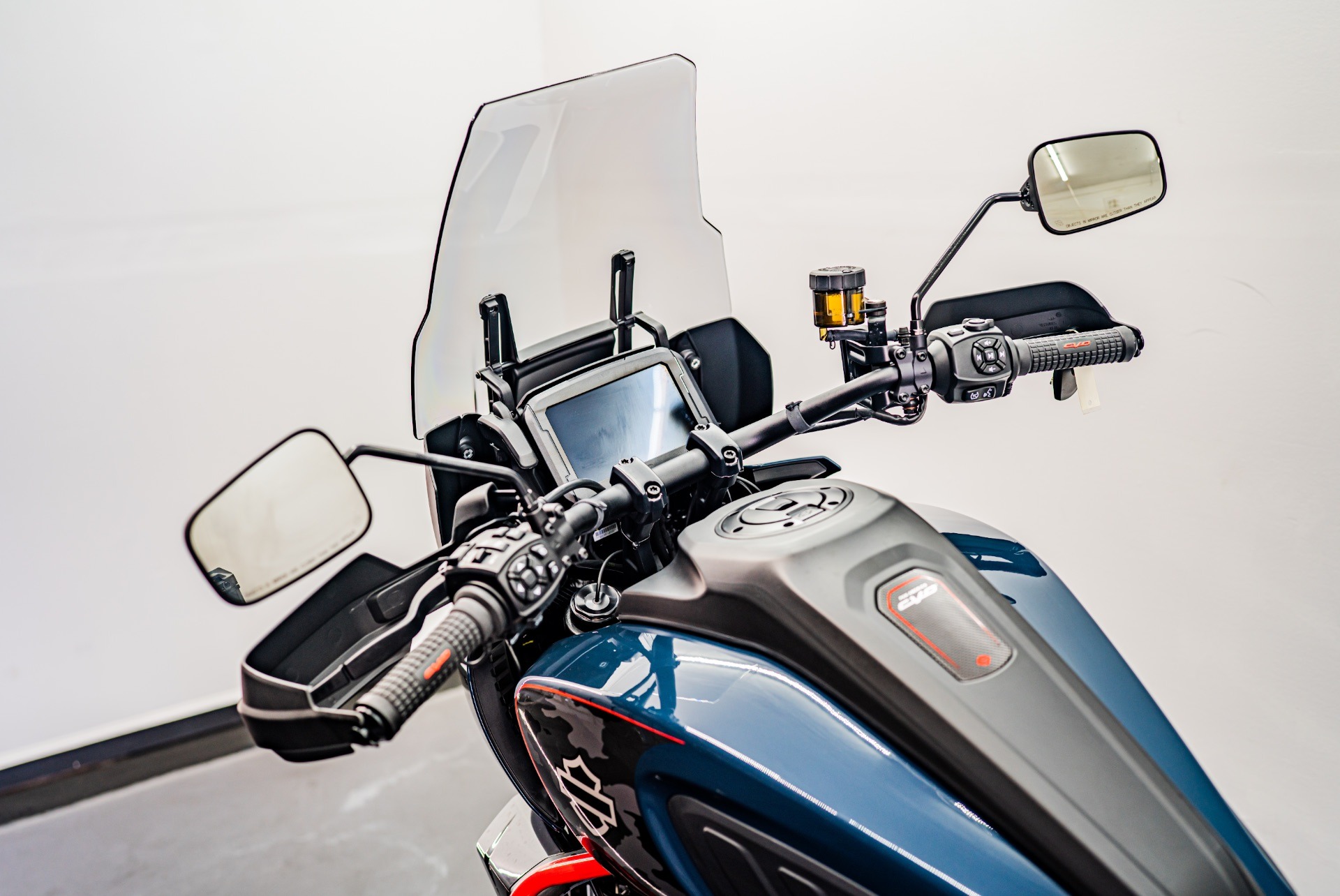

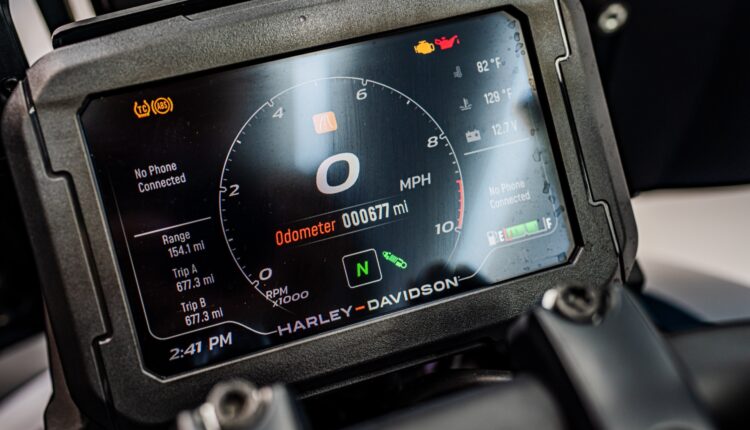

• Massive Electronics Suite: Managed via a giant 6.8-inch color TFT touchscreen display with smartphone pairing for media, calls, and robust navigation via the H-D Mobile App.

• Elite Safety Enhancements: Packed with rider aids, including Cornering Enhanced ABS (C-ABS), Cornering Enhanced Traction Control (C-TCS), Drag-Torque Slip Control (DSCS), Wheel Lift Mitigation, Tire Pressure Monitoring (TPMS), and Vehicle Hold Control (VHC) to prevent roll-back on steep inclines.

Technical Specifications & Advanced Metrics

Engine & Powertrain

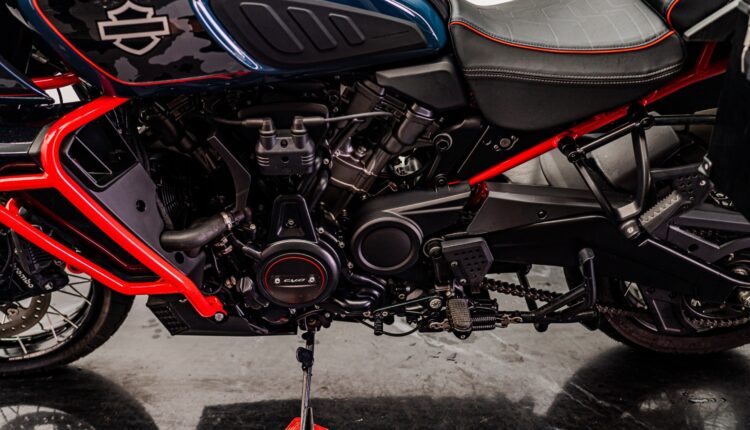

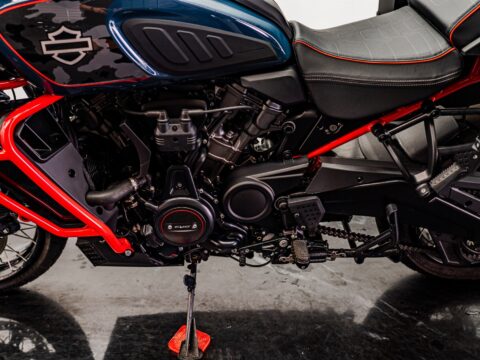

• Engine: Revolution® Max 1250 (1,252 cc / 76.4 cu. in.)

• Valves: Chain-driven, DOHC, hydraulic self-adjusting lifters, intake/exhaust Variable Valve Timing (VVT), 4 valves per cylinder

• Horsepower: 150 hp (111 kW) @ 8,750 rpm

• Torque: 95 ft-lbs (129 Nm) @ 6,750 rpm (Testing Method J1349)

• Bore x Stroke: 4.134 x 2.846 (105 times x 72.3 mm)

• Compression Ratio: 13.0:1

• Air Cleaner: Downdraft intake, tuned velocity stacks, washable filter media

• Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

• Exhaust: 2-into-1-into-1; catalyst in header

• Lubrication & Cooling: Semi-dry sump; 2.32 qt. (2.2L) coolant capacity; 4.75 qt. (4.5L) oil capacity with filter

• Starting: 0.9 kW electric with direct-drive starter motor engagement

Drivetrain & Gear Ratios

• Transmission: 6-Speed with Screamin’ Eagle Dual-Direction Quick Shifter

• Clutch: Mechanical, 8-plate wet, assist and slip (1090N)

• Primary Drive: Gear, 49/89 ratio

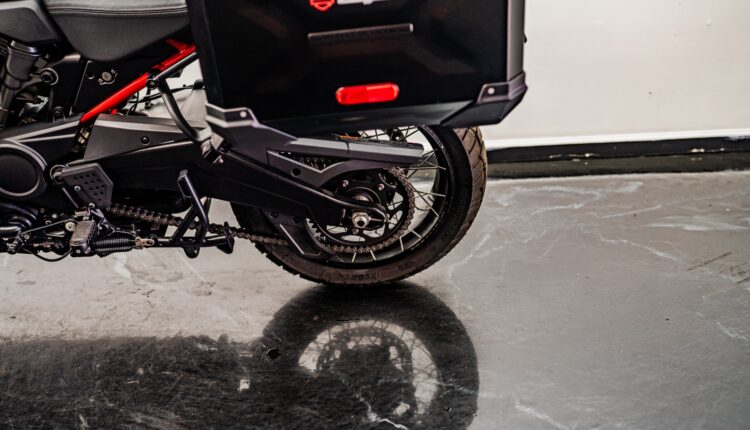

• Final Drive: Chain, 19/48 ratio

• Overall Gear Ratios: 1st: 13.11 | 2nd: 9.687 | 3rd: 7.509 | 4th: 6.057 | 5th: 5.08 | 6th: 4.436

Chassis, Suspension & Handling

• Frame: Stressed-member, high-strength low-alloy steel trellis frame; stamped, cast, and forged junctions; MIG welded with an aluminum forged mid-structure

• Swingarm: One-piece cast aluminum

• Front Suspension: 47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH); aluminum fork triple clamps | Travel: 7.5 in. (191 mm)

• Rear Suspension: Linkage-mounted monoshock with automatic electronic preload control, semi-active compression/rebound damping, and Adaptive Ride Height (ARH) | Travel: 7.5 in. (191 mm)

• Lean Angle (Right/Left): 42° / 42° (Testing Method J1168)

• Rake / Trail: 25° / 4.3 in. (108 mm)

Brakes, Wheels & Tires

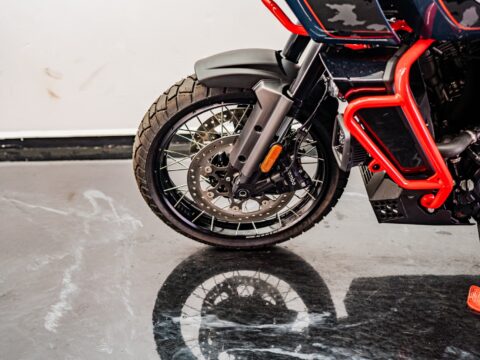

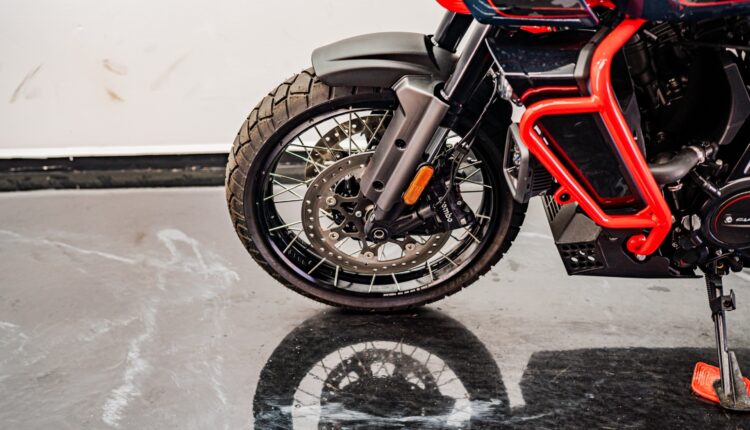

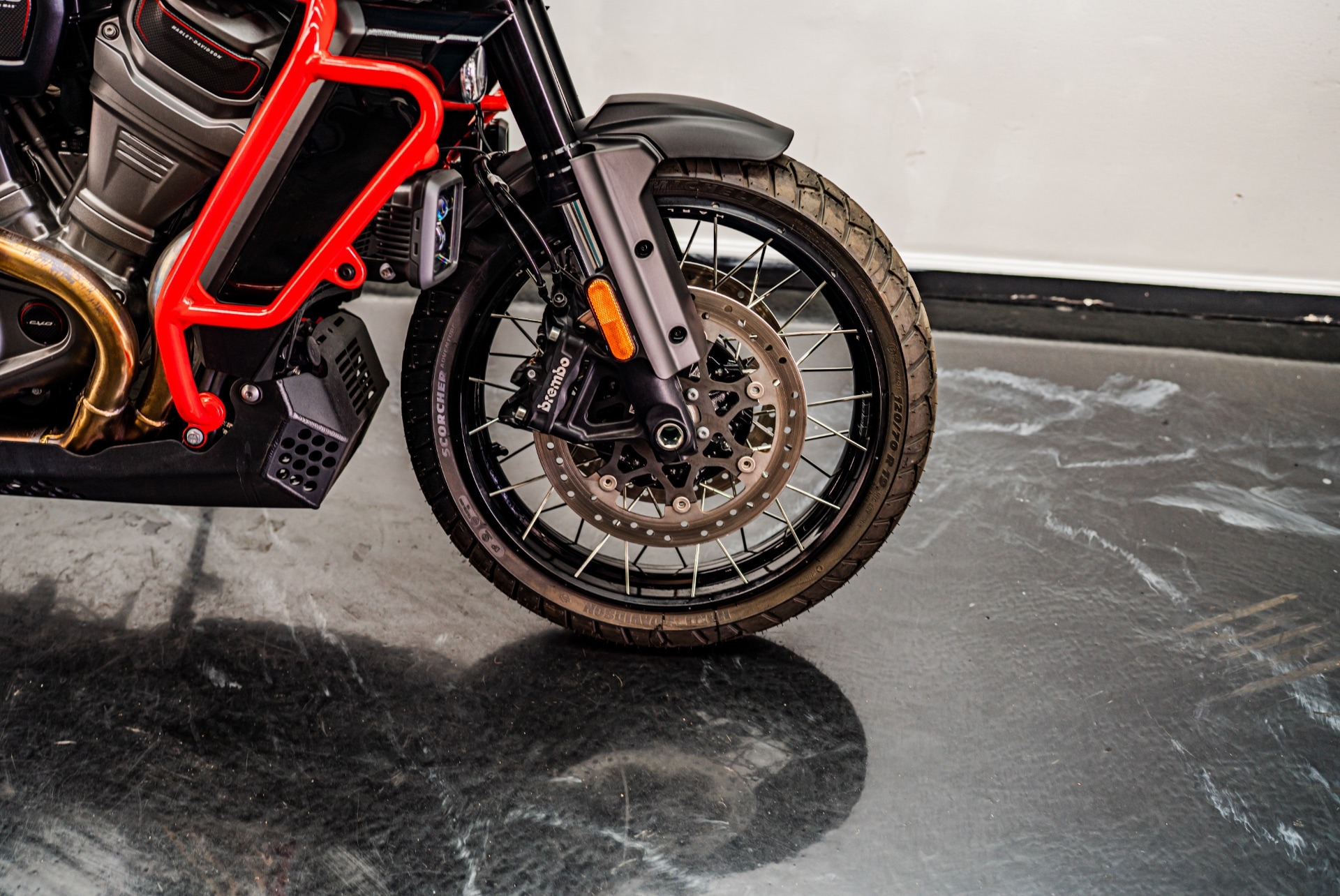

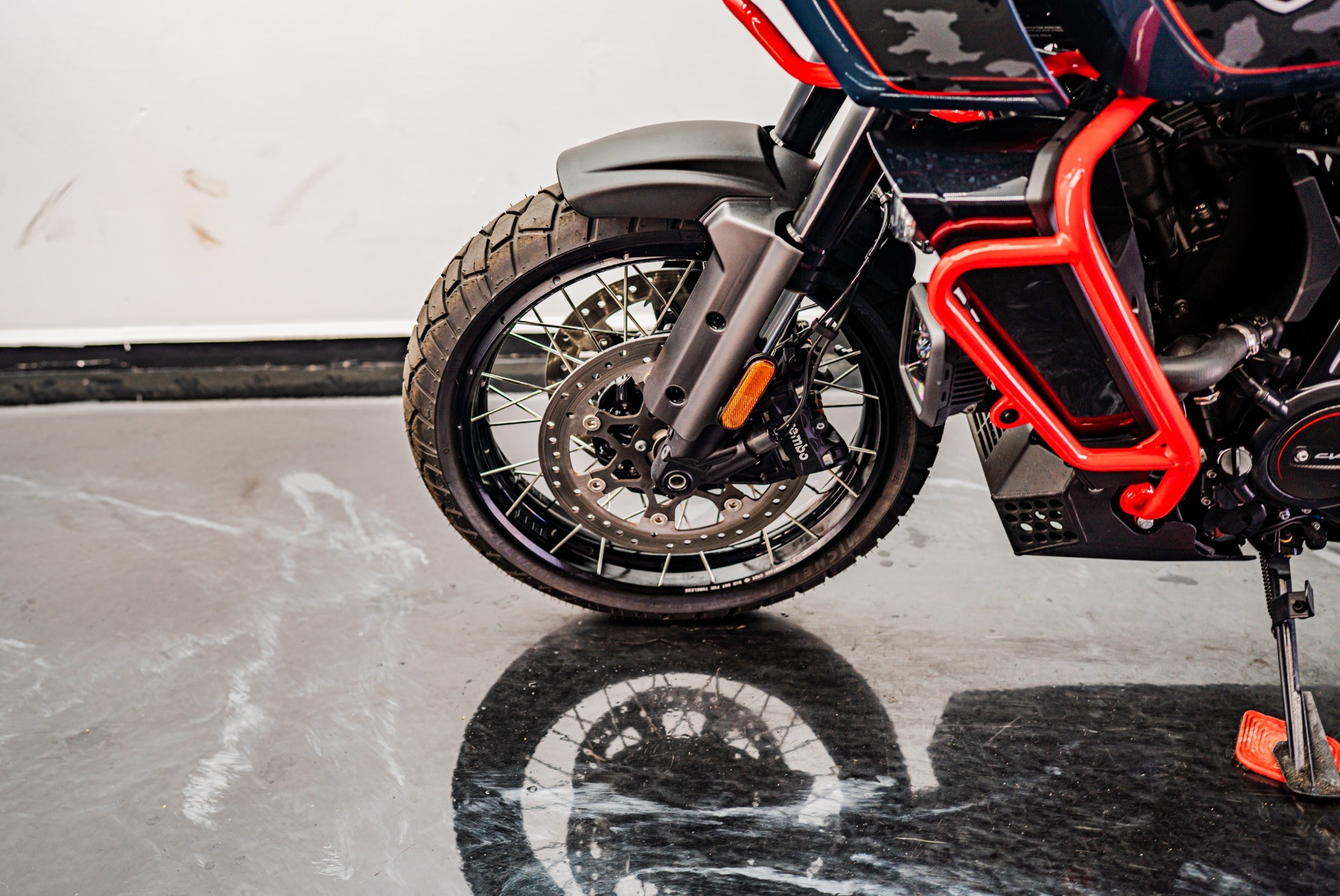

• Front Brakes: Dual rotor, floating, tower-mounted (12.6 in. / 320 mm diameter x 0.17 in. / 4.5 mm thickness); radially mounted, monoblock, 4-piston Brembo calipers

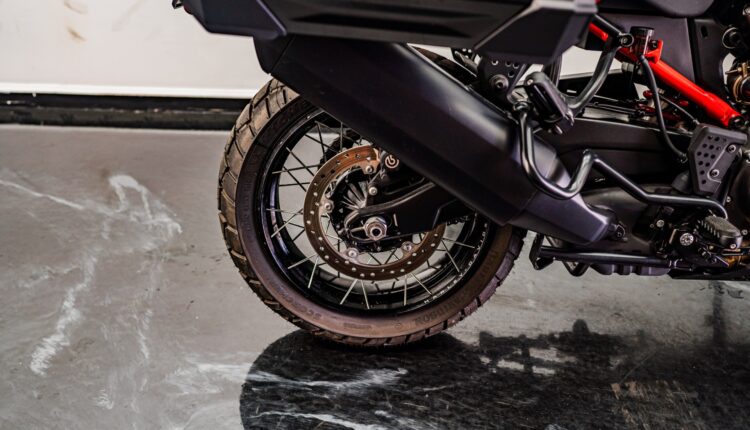

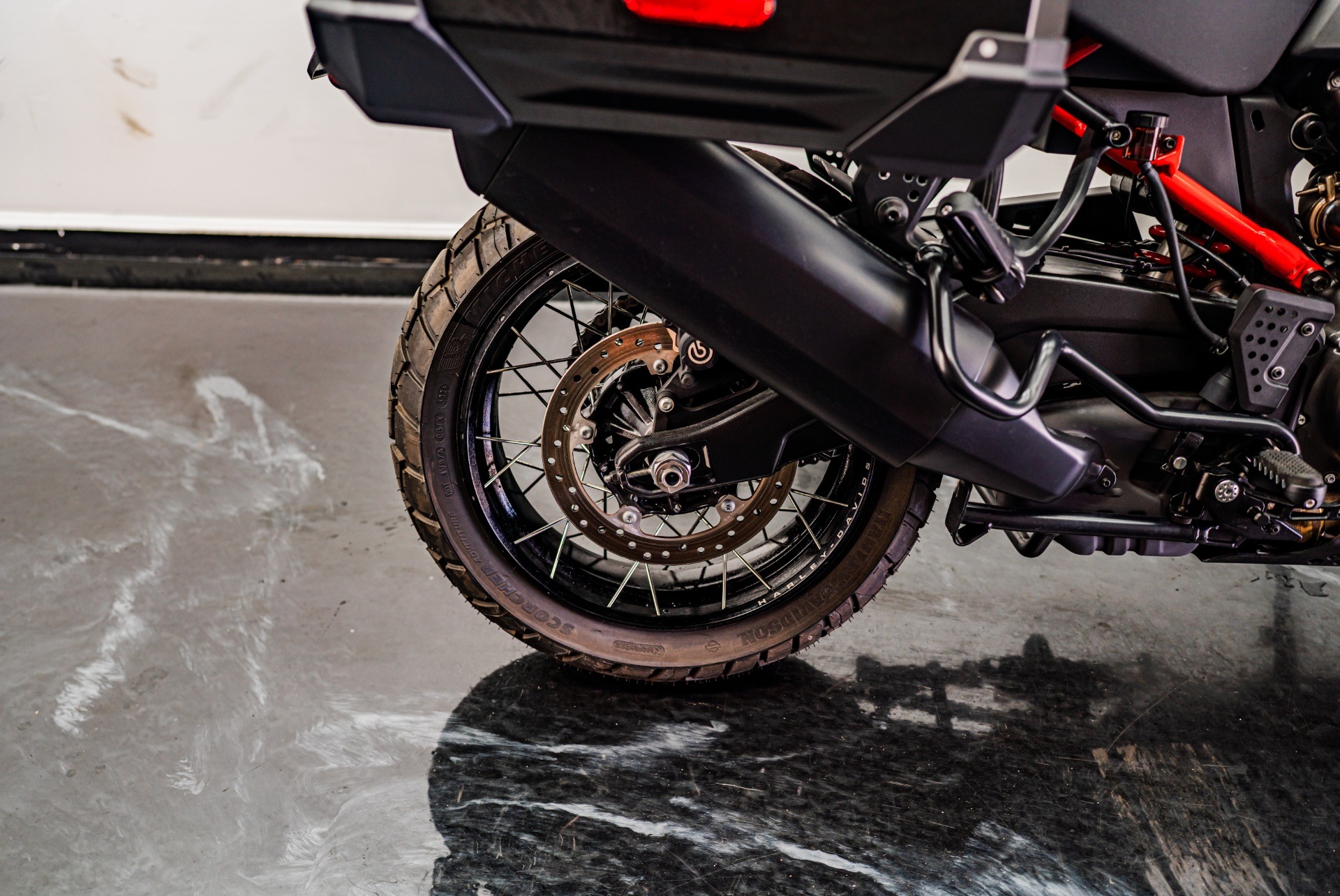

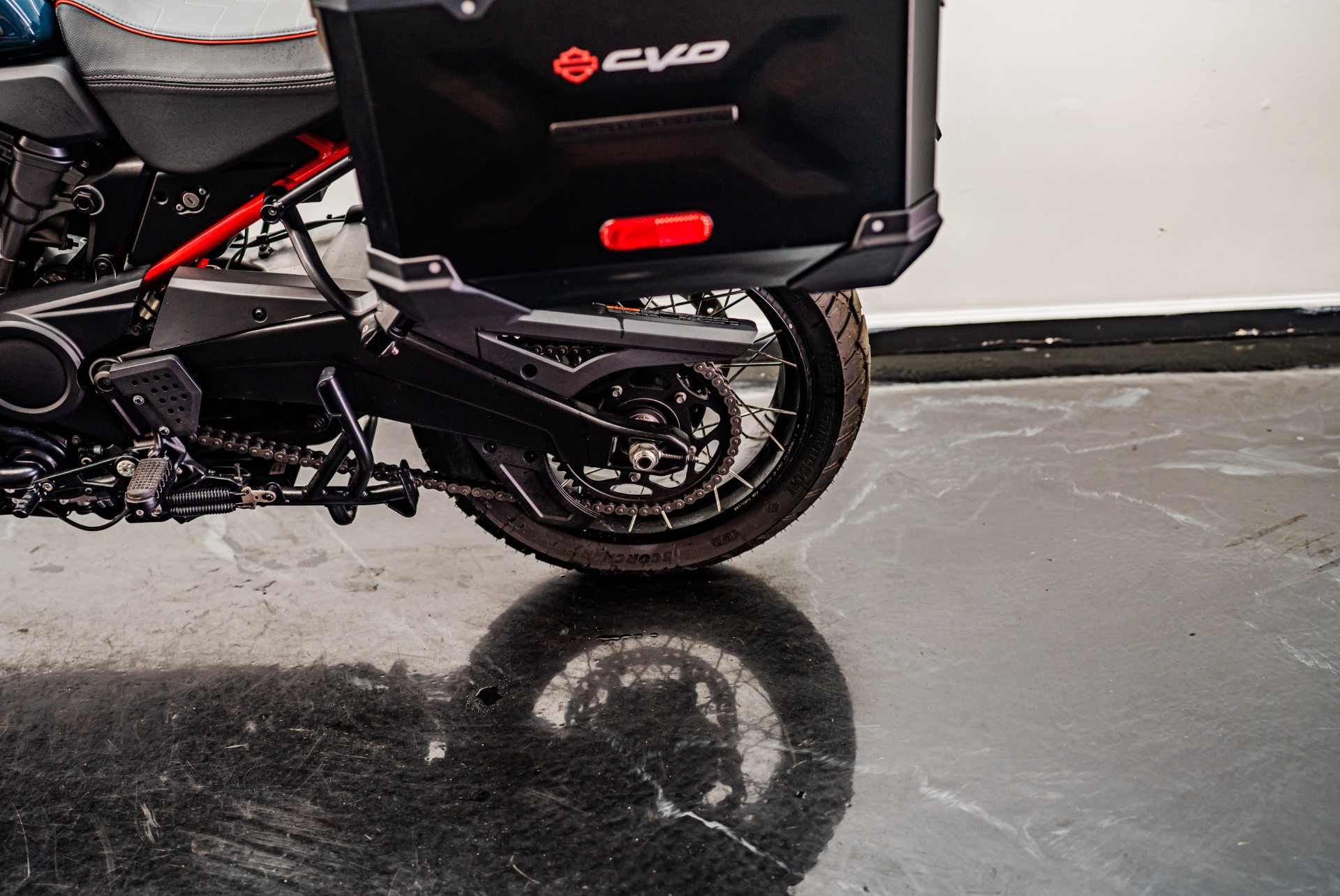

• Rear Brakes: Solid uniform expansion rotor (11 in. / 280 mm diameter x 0.2 in. / 5 mm thickness); floating, single-piston caliper

• Wheels: Anodized aluminum tubeless laced (Front: 19 x 3 in. | Rear: 17 x 4.5 in.)

• Tires: Michelin® Scorcher “Adventure” Radial (Front: 120/70R19 60V | Rear: 170/60R17 72V)

Dimensions & Capacities

• Length: 92.3 in. (2,345 mm)

• Width: 43.1 in. (1,095 mm)

• Height: 59.4 in. (1,510 mm)

• Seat Height (Laden): 30.4 in. (772 mm)

• Ground Clearance (Static): 7.1 in. (180 mm)

• Wheelbase: 62.4 in. (1,585 mm)

• Fuel Capacity: 5.6 gal. (21.2L) | 1 gal. (3.8L) low-fuel warning reserve

• Fuel Economy: Estimated 46 mpg (5.1L / 100 km)

• Weight (As Shipped): 626 lbs (284 kg)

• Weight (In Running Order): 659 lbs (299 kg)

• Gross Vehicle Weight Rating (GVWR): 1,034 lbs (469 kg)

• Gross Axle Weight Rating: Front: 399 lbs (181 kg) | Rear: 665 lbs (302 kg)

Electrical & Cockpit Infotainment

• Battery: Sealed, maintenance-free, absorbed glass mat (AGM), 12V, 17.5Ah, 310 CCA at 0°F

• Charging System: Three-phase, 45A system (390W @ 13V, 1,300 rpm; 585W max power @ 13V, 2,500 rpm)

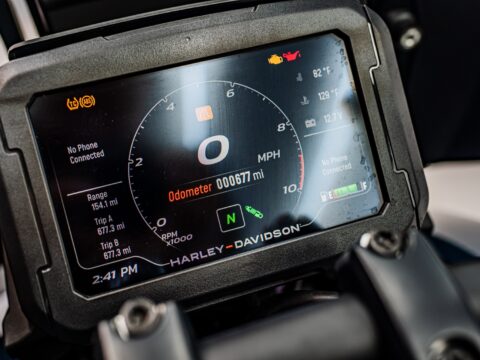

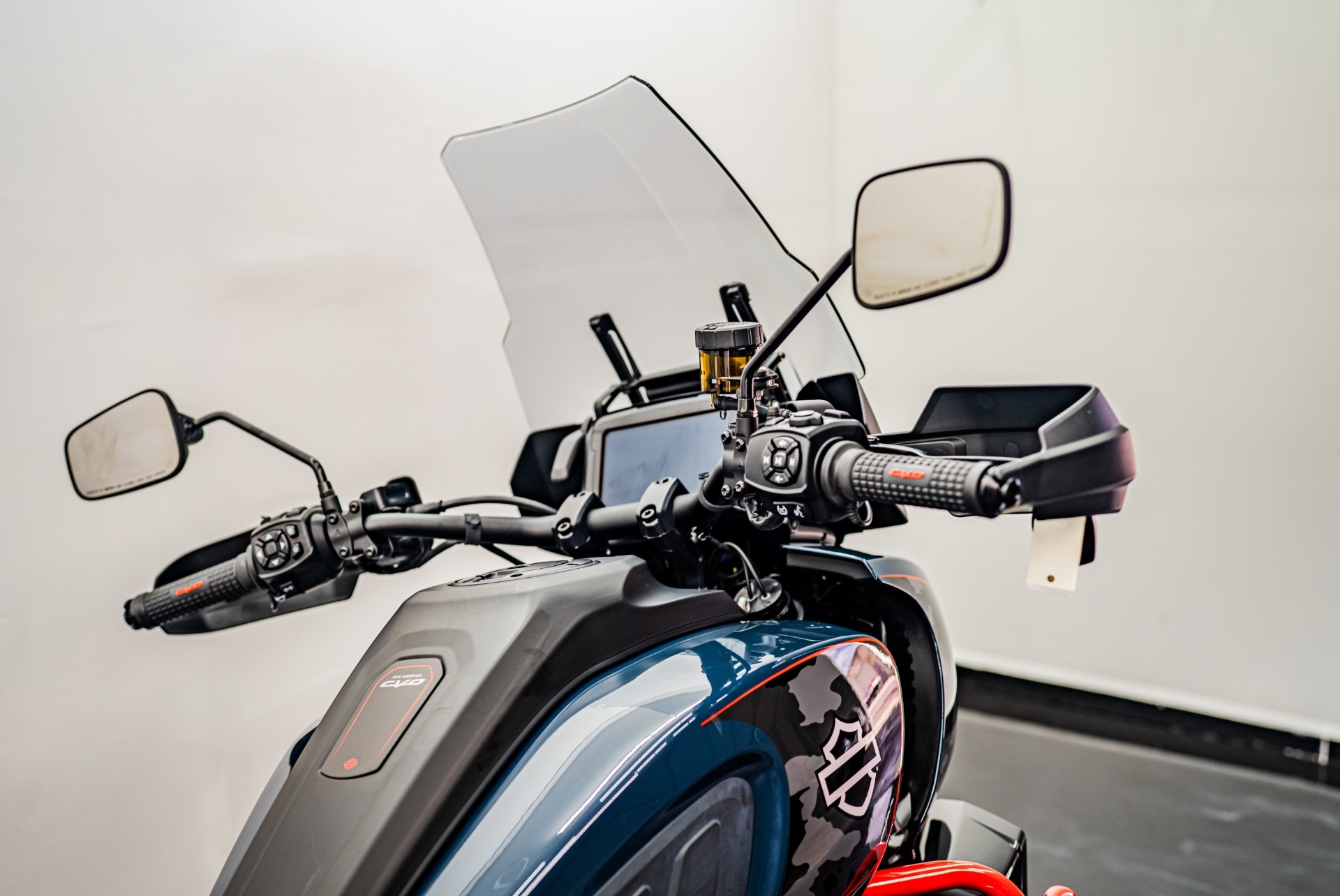

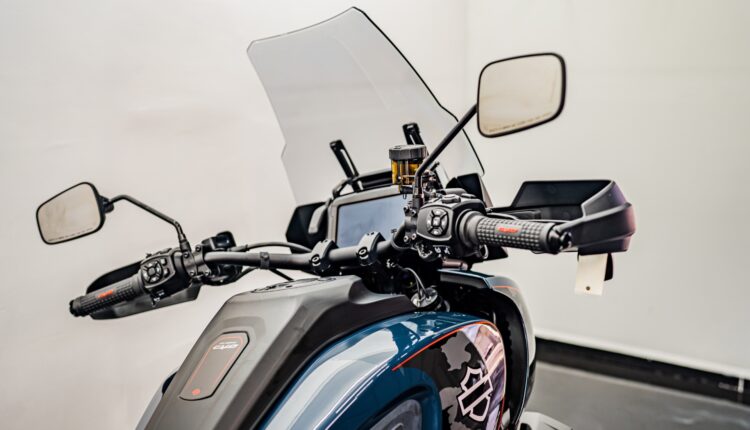

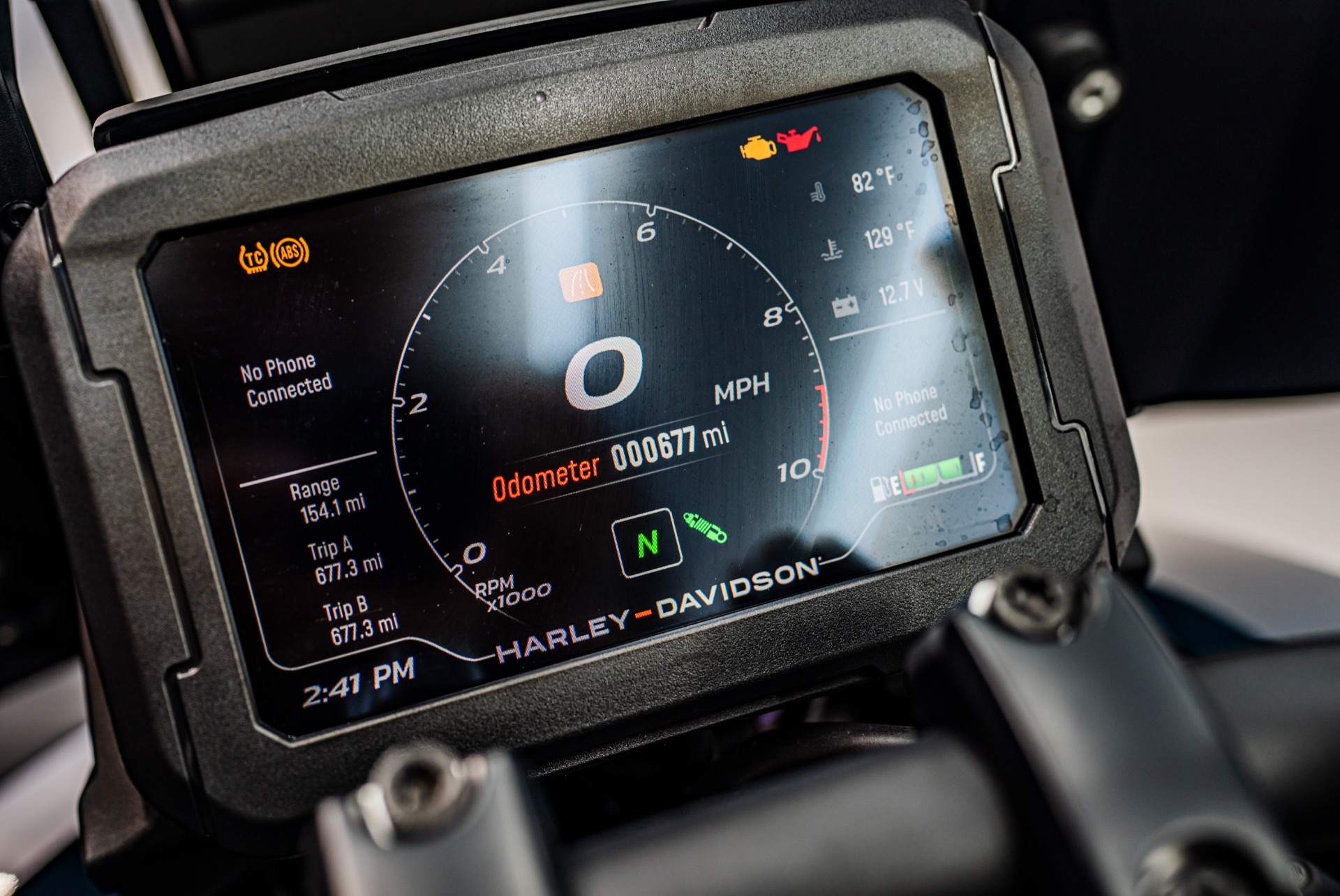

• Main Display: 6.8-inch (173 mm) viewable area Color TFT Touchscreen with multi-language support (24 languages)

• Gauges & Telemetry: Speedometer, gear, odometer, fuel level, clock, trip meter, ambient temperature, low-temperature alert, side-stand down alert, TIP-over alert, cruise control, range, tachometer, TPMS, engine temp, and battery voltage

• Connectivity: Bluetooth phone/media pairing to access calls, music, and navigation via the H-D Mobile App. Dual USB-C power outlets (Output up to 5V at 3A)

• Lighting: Daymaker® Adaptive LED Headlamp with an integrated Inertial Measurement Unit (IMU) controlling a 6-segment LED banking lamp; signature all-LED tail/stop lamp; LED bullet turn signals

 Factory CVO™ Additions & Advanced Safety Suites

• Adaptive Ride Height (ARH): Automatically lowers the seat height when coming to a complete stop to plant your feet firmly, and raises to optimal riding height when moving.

• Full Comprehensive Safety Package:

  • Anti-lock Brake System (ABS) & Cornering Enhanced ABS (C-ABS)

  • Electronic Linked Braking (ELB) & Cornering Enhanced ELB (C-ELB)

  • Traction Control System (TCS) & Cornering Enhanced TCS (C-TCS)

  • Drag-Torque Slip Control System (DSCS) & Cornering Enhanced DSCS (C-DSCS)

  • Vehicle Hold Control (VHC)

  • Wheel Lift Mitigation & Enhanced Lift Mitigation

  • Tire Pressure Monitoring System (TPMS)

• Selectable Ride Profiles: Nine distinct ride modes managed instantly through the full-color touchscreen display.

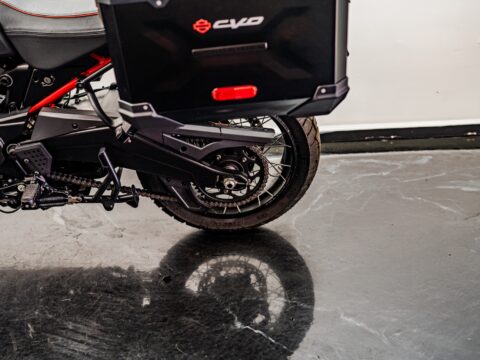

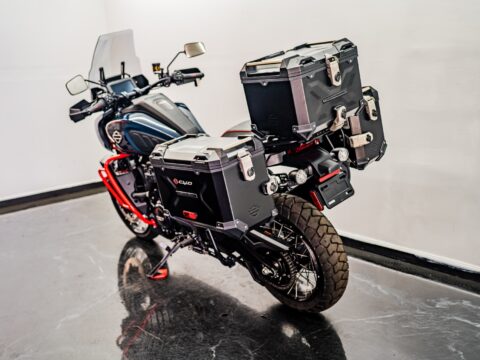

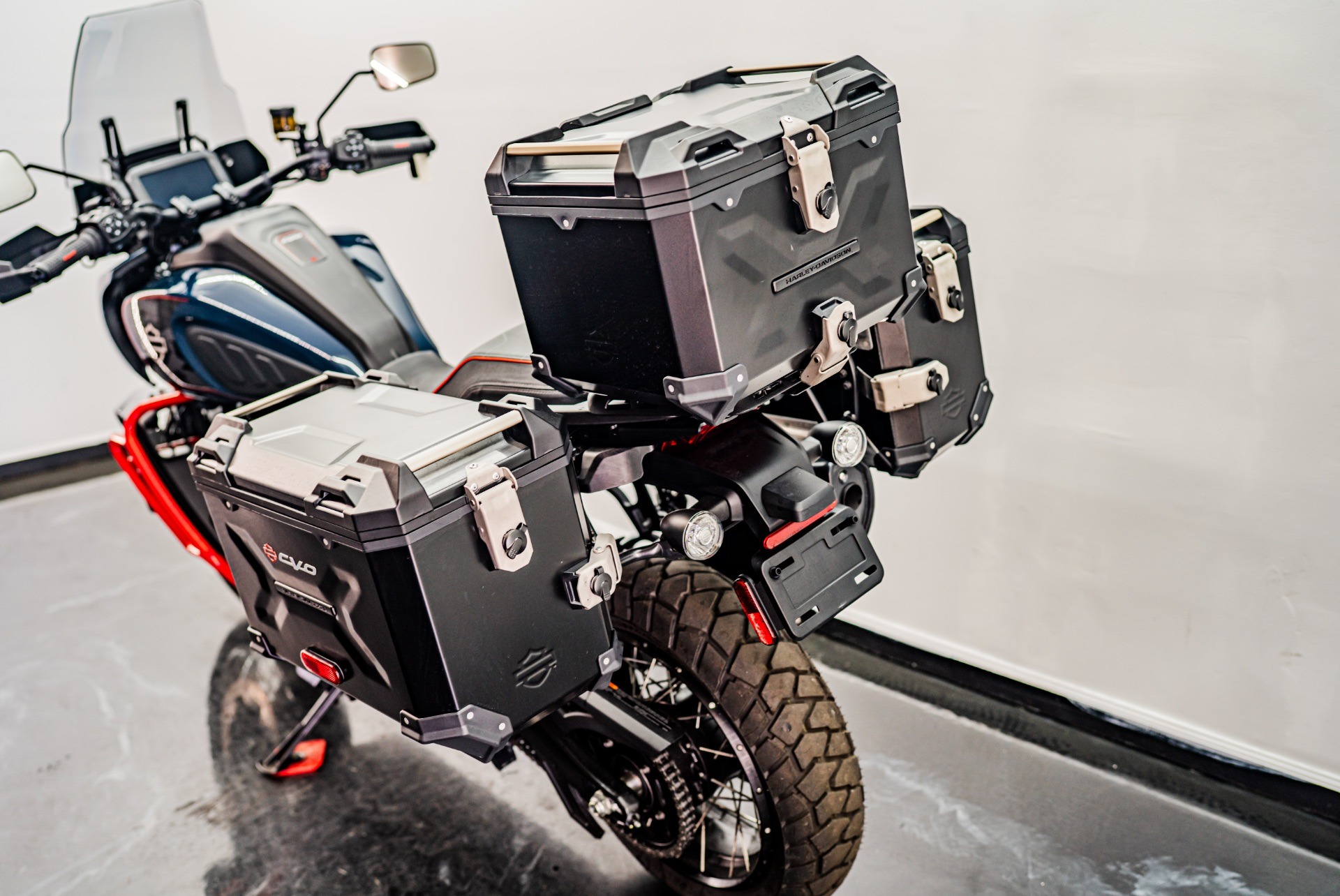

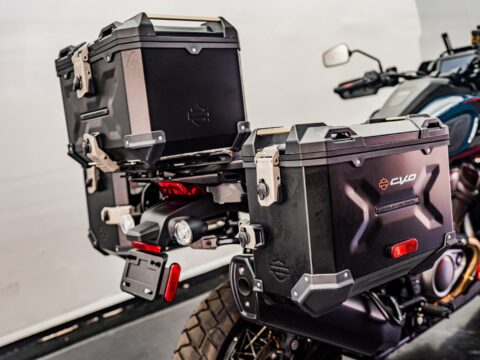

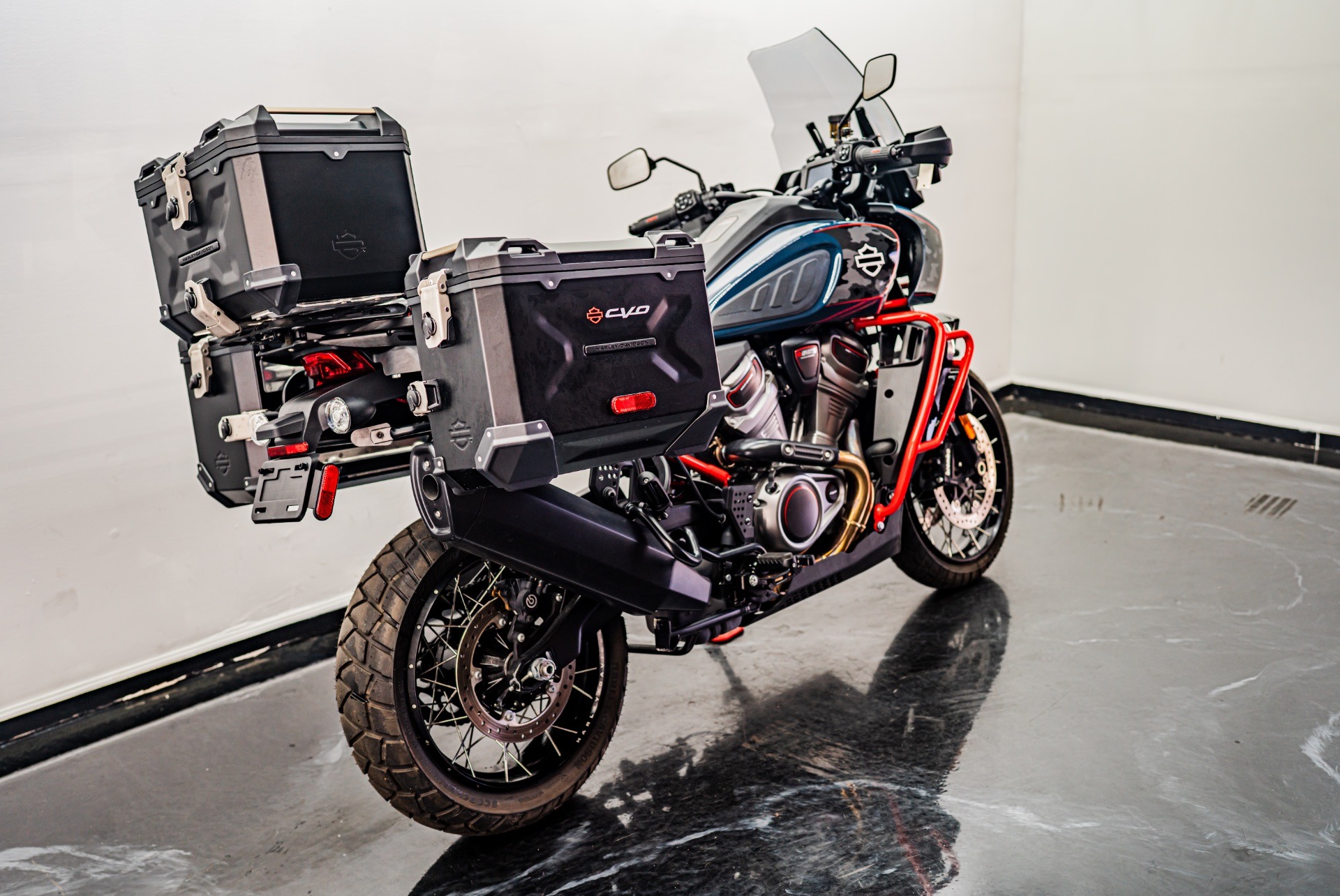

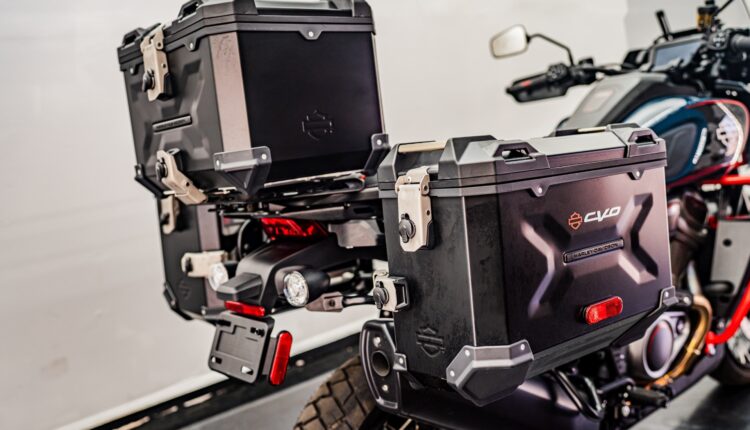

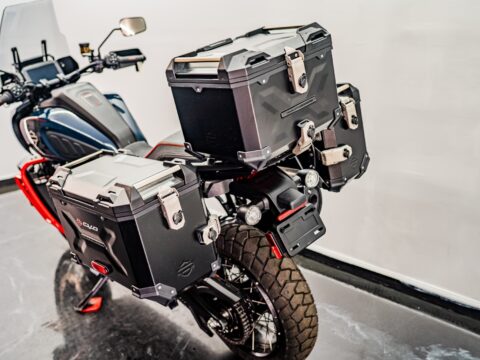

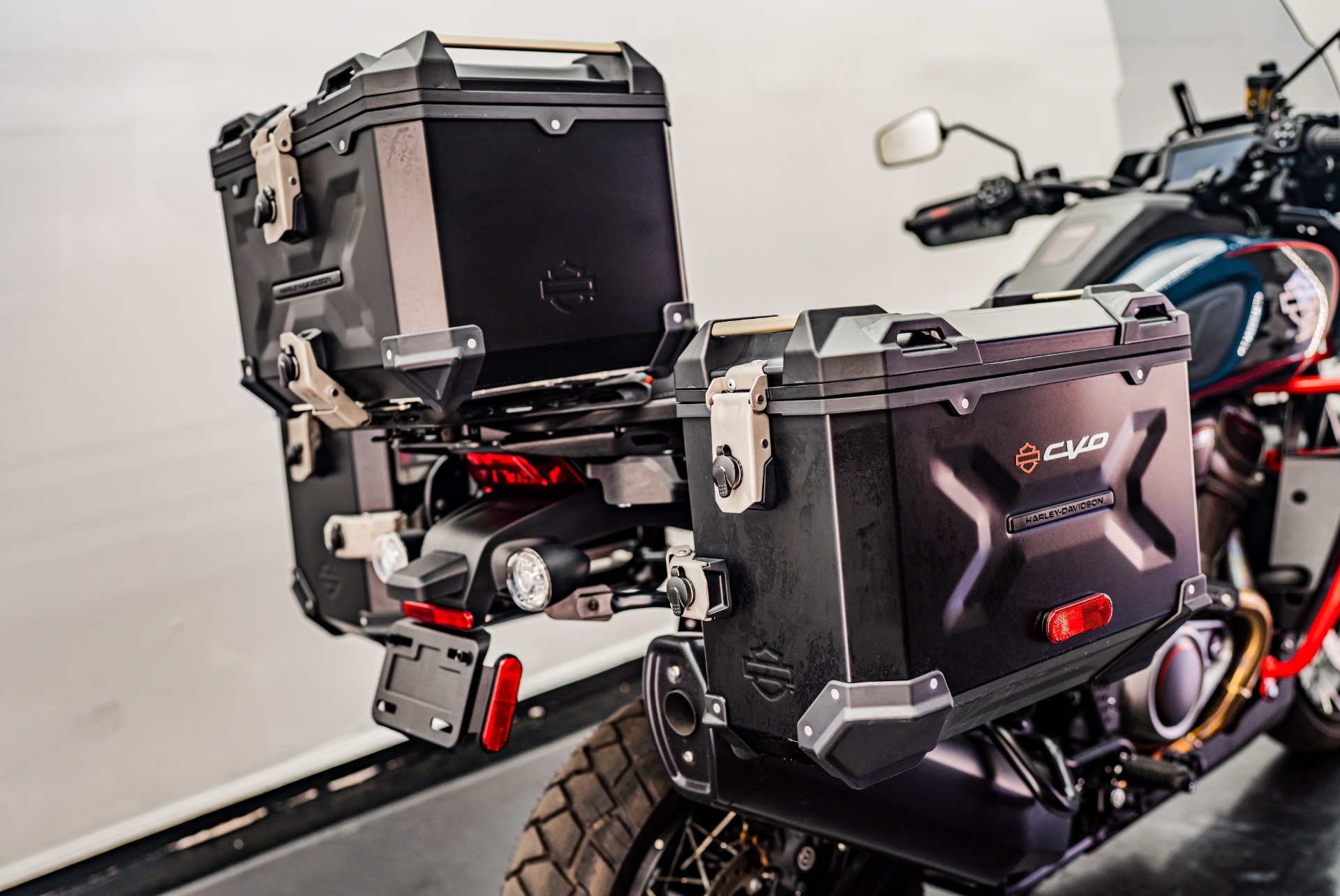

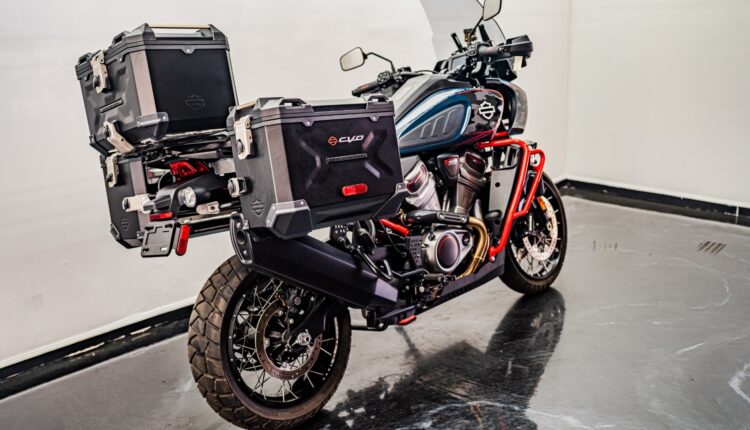

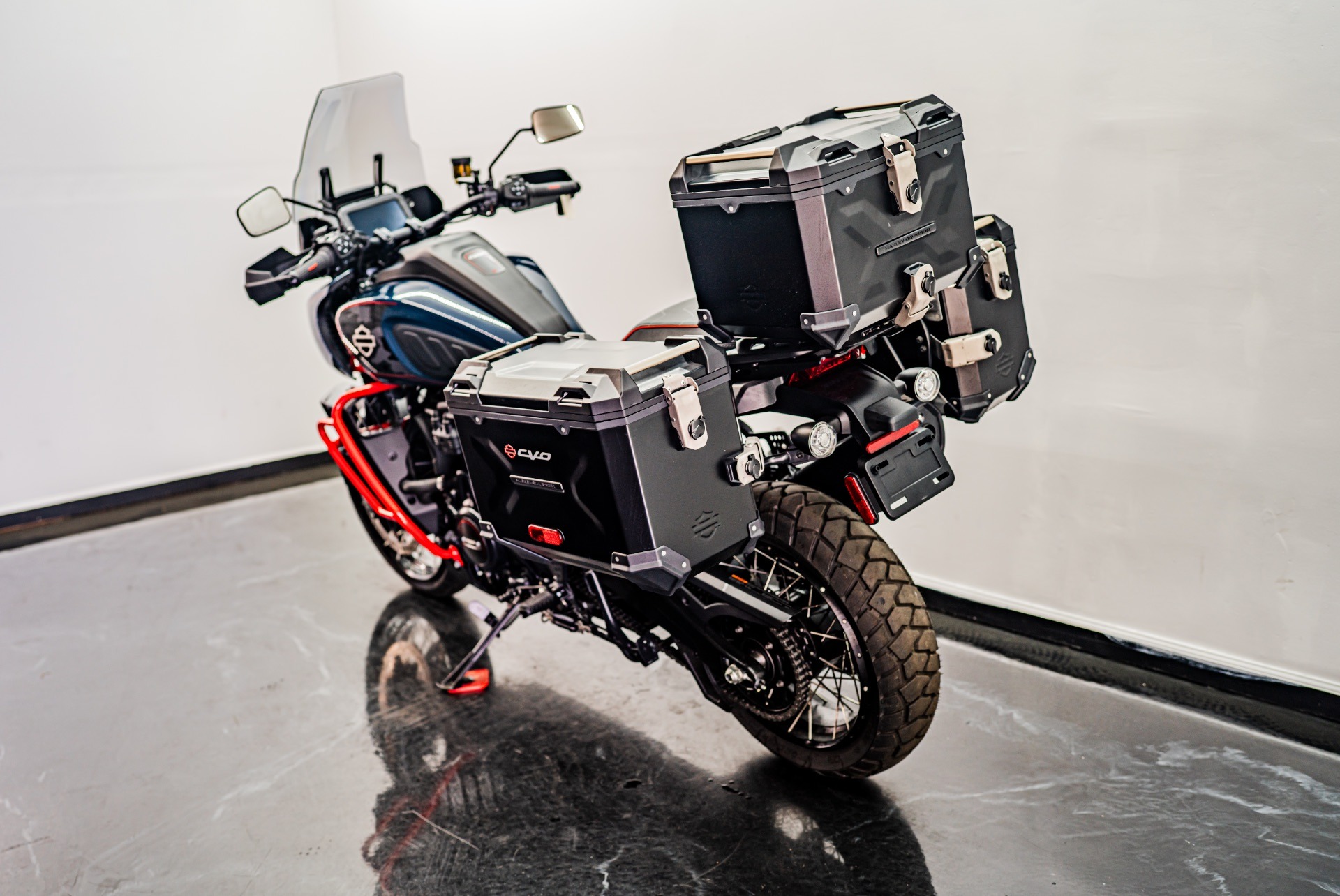

• SW-Motech Aluminum Luggage: Full black aluminum hardcase three-piece setup delivering 120 liters (4.24 cu. ft.) of combined storage space, including premium CVO detailing and a custom passenger backrest on the top case.

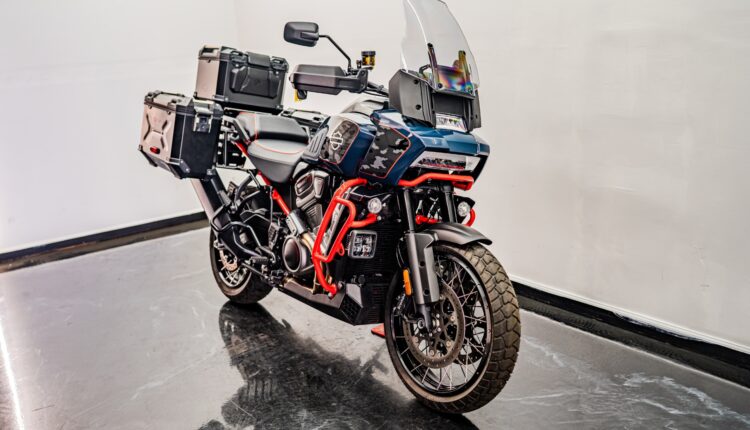

• Full Factory Guarding Package: Factory-installed muffler guard, radiator guard, heavy-duty skid pad, and tank knee pads. Includes a built-in security system and electronic cruise control.

⚠️ Opportunities like this are rare. A factory CVO™ Pan America with under 700 miles, pristine Carbon Blue paint, and a massive price savings from new will not stick around.
