2021 Ducati Panigale V4 S

2021 Ducati Panigale V4 S – The Pure Science of Speed

Championship pedigree engineered for total track domination. The 2021 Ducati Panigale V4 S elevates superbike performance to an entirely new dimension, offering amateur track enthusiasts and seasoned professional racers an unrivaled competitive edge. This isn’t just a sportbike—it is a street-legal MotoGP prototype, meticulously refined with direct feedback from Ducati Corse and the Superbike World Championship events.

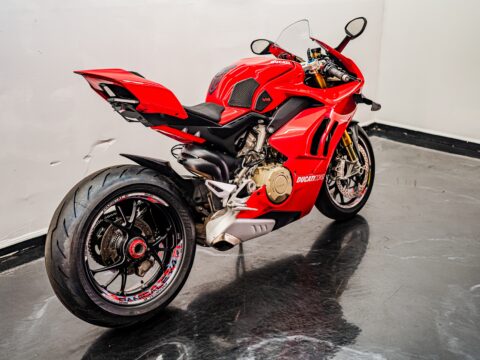

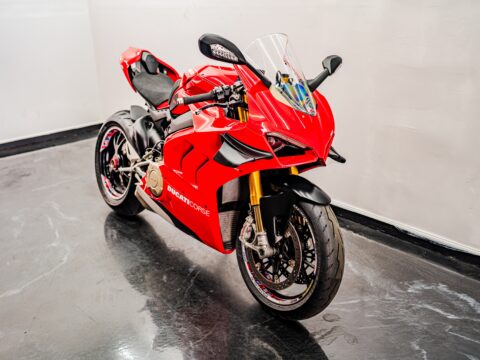

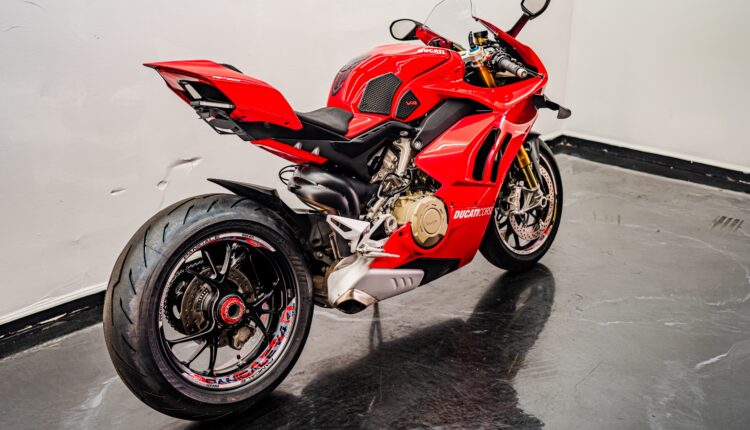

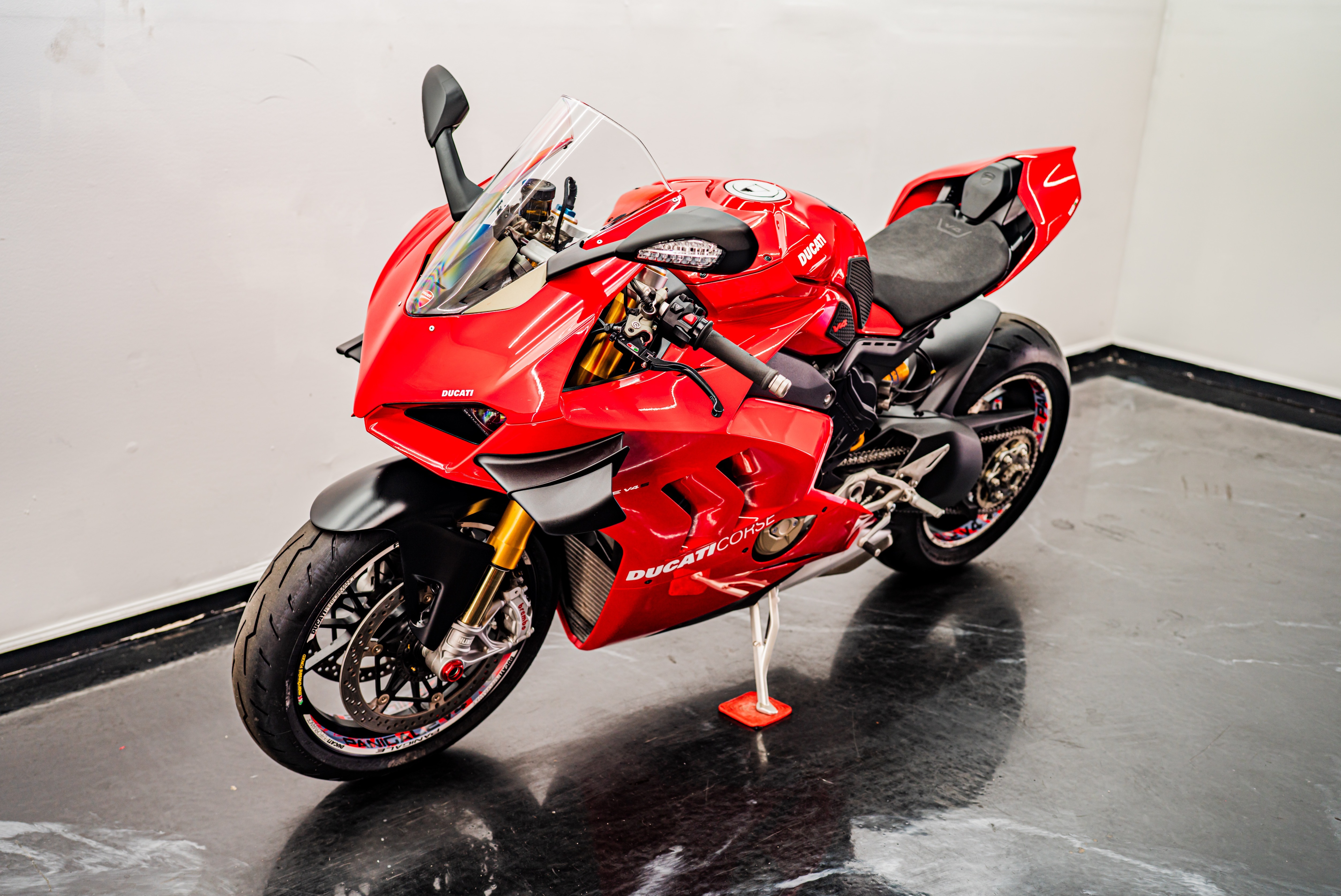

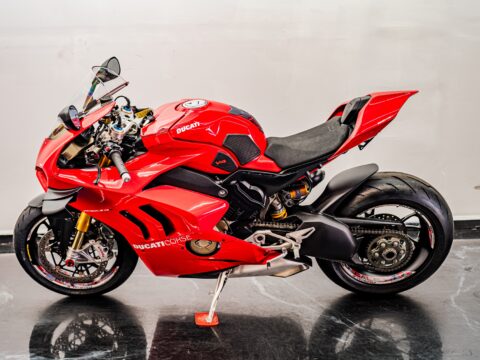

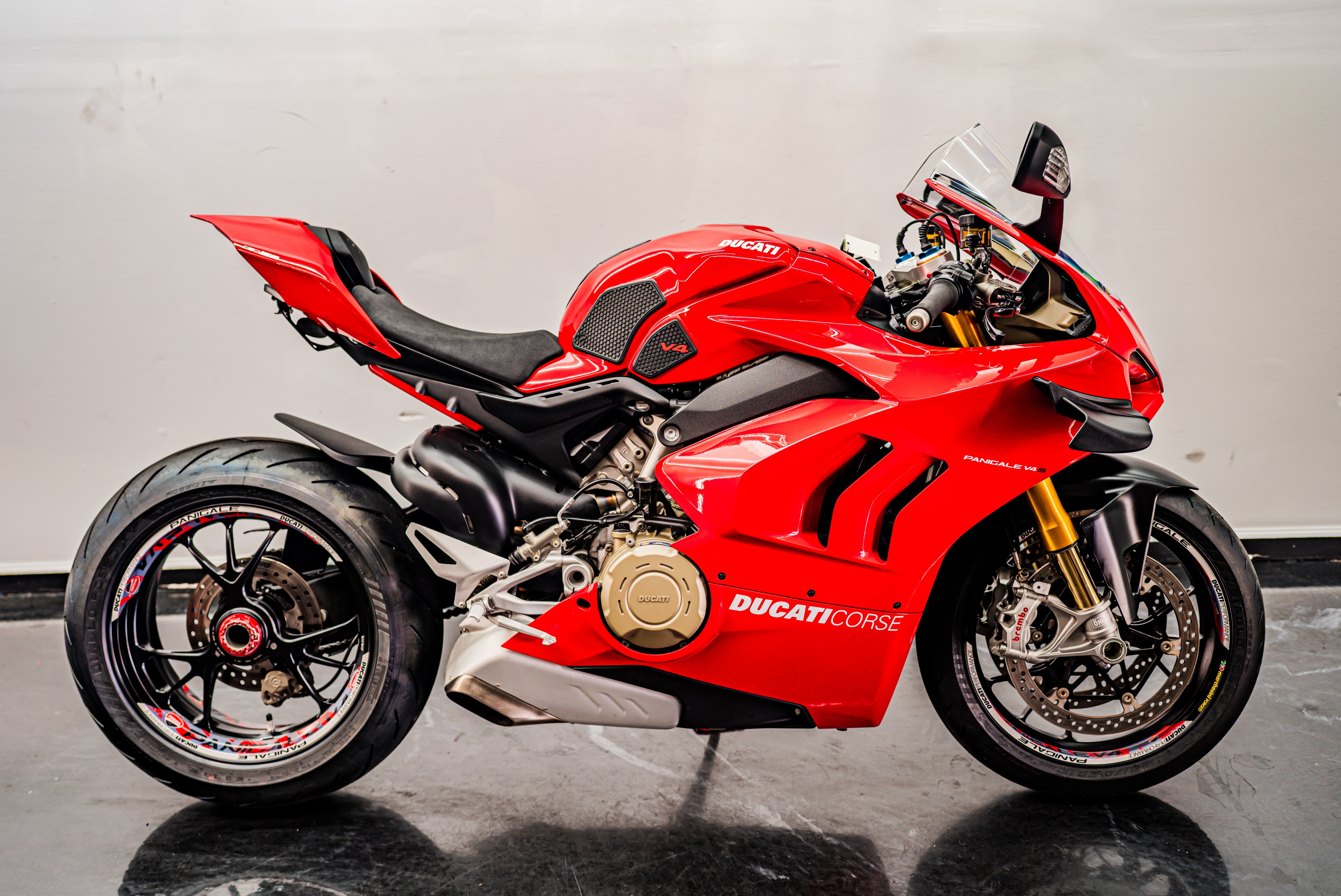

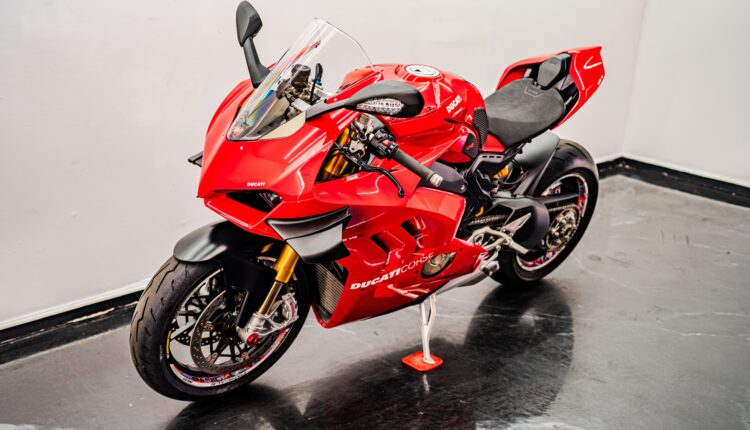

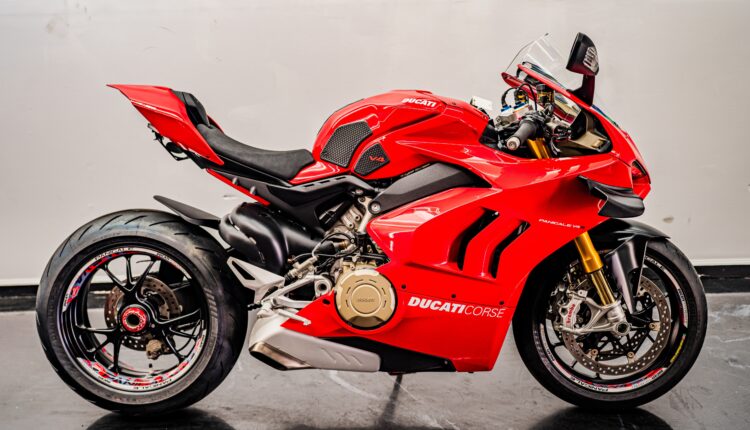

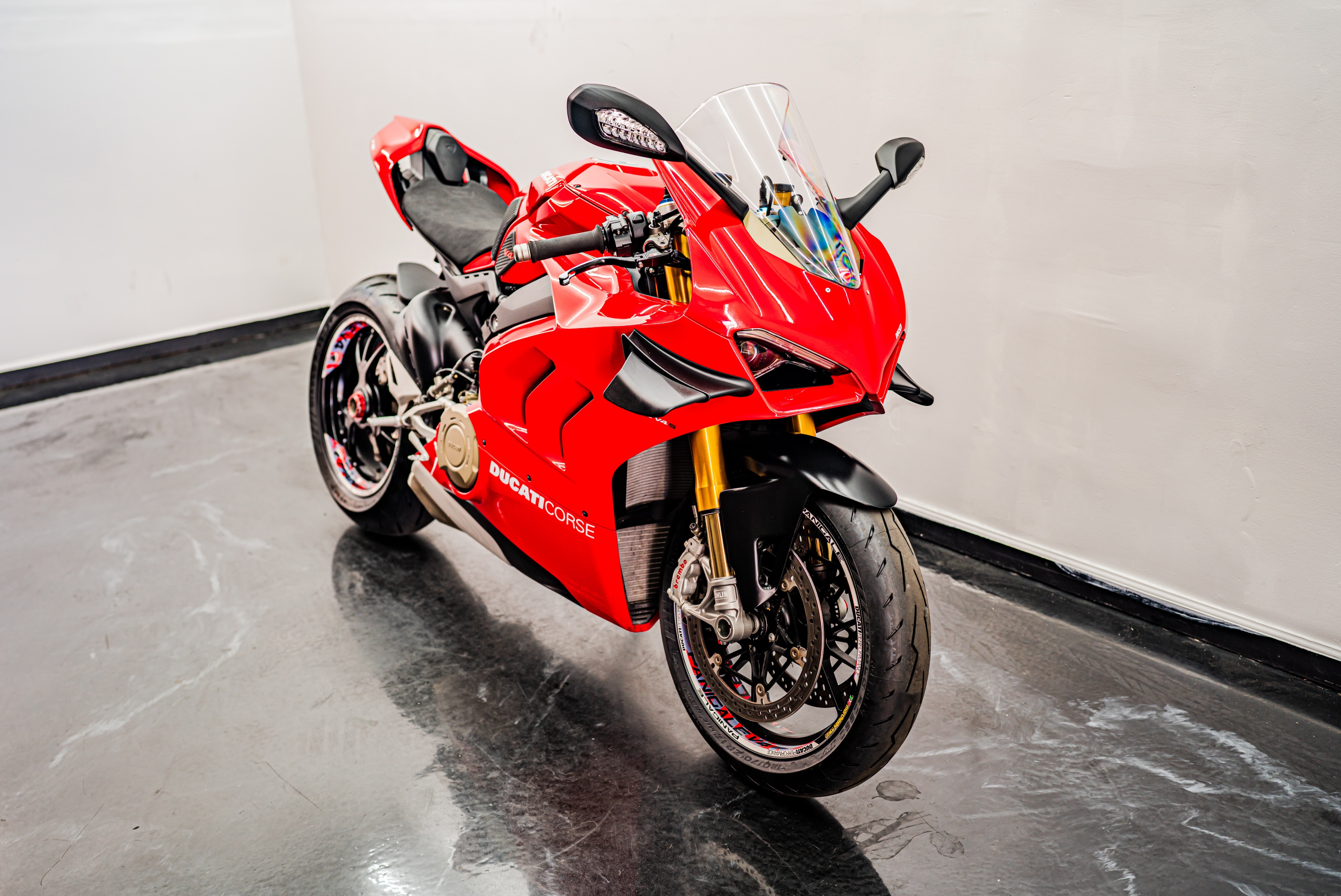

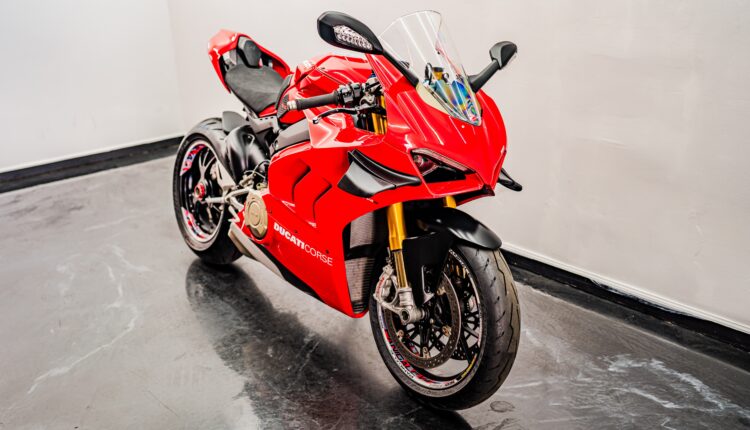

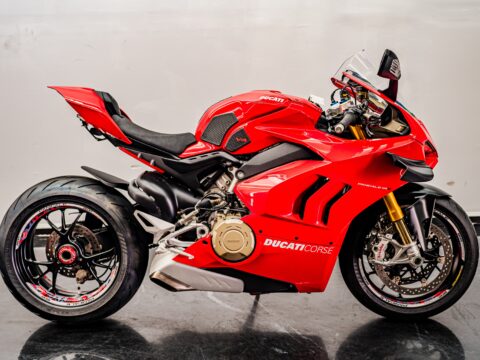

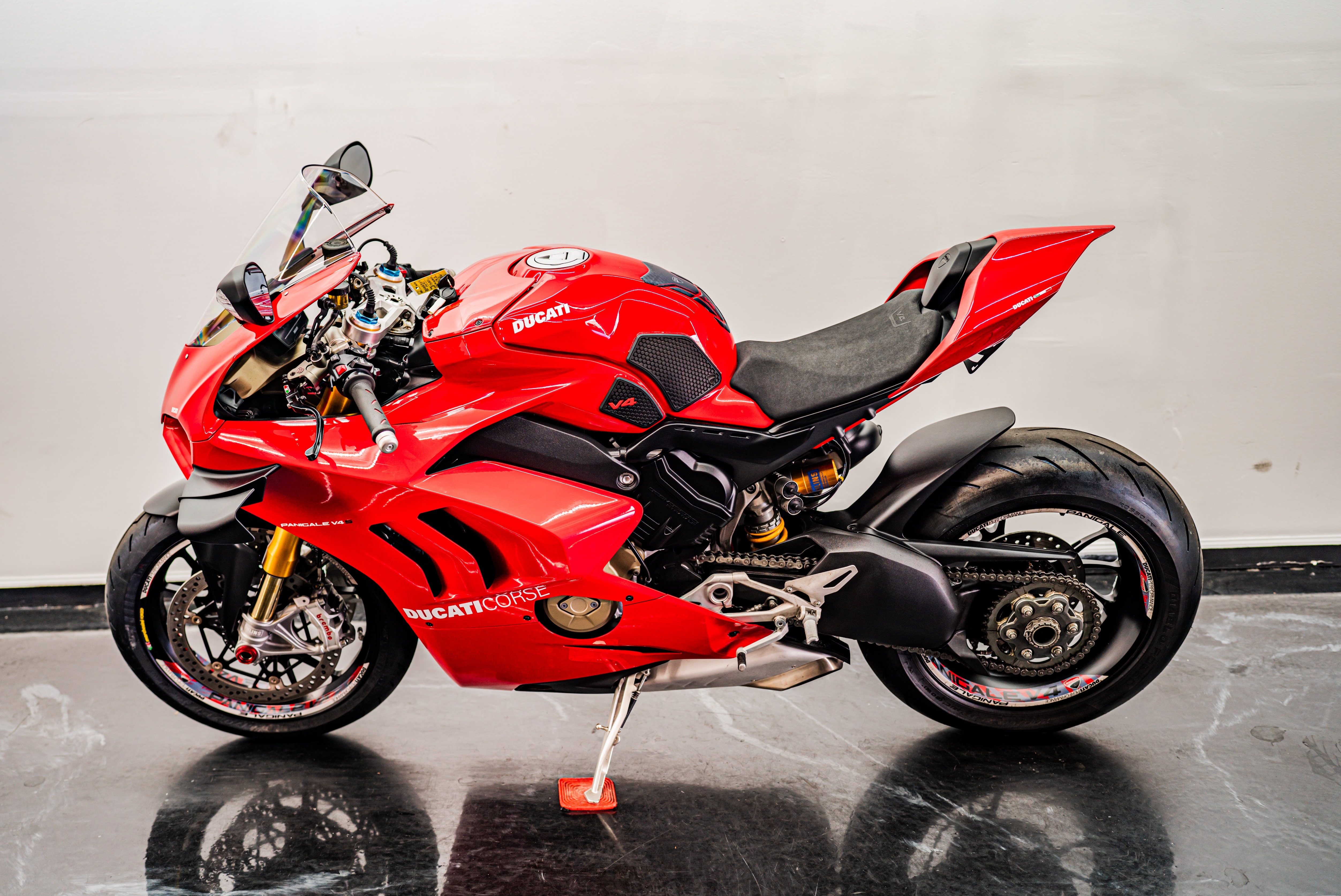

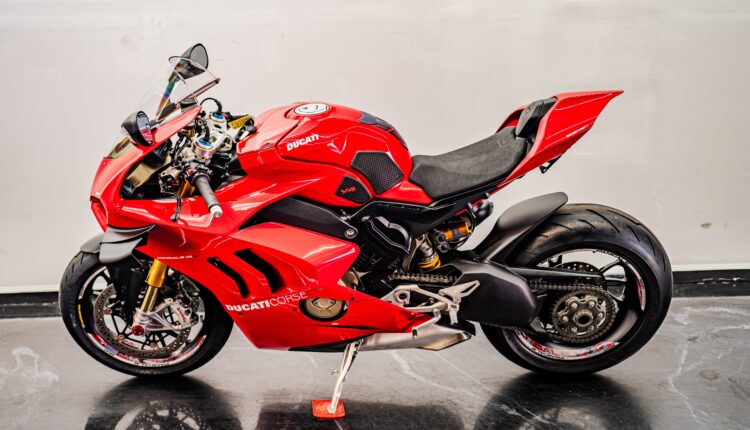

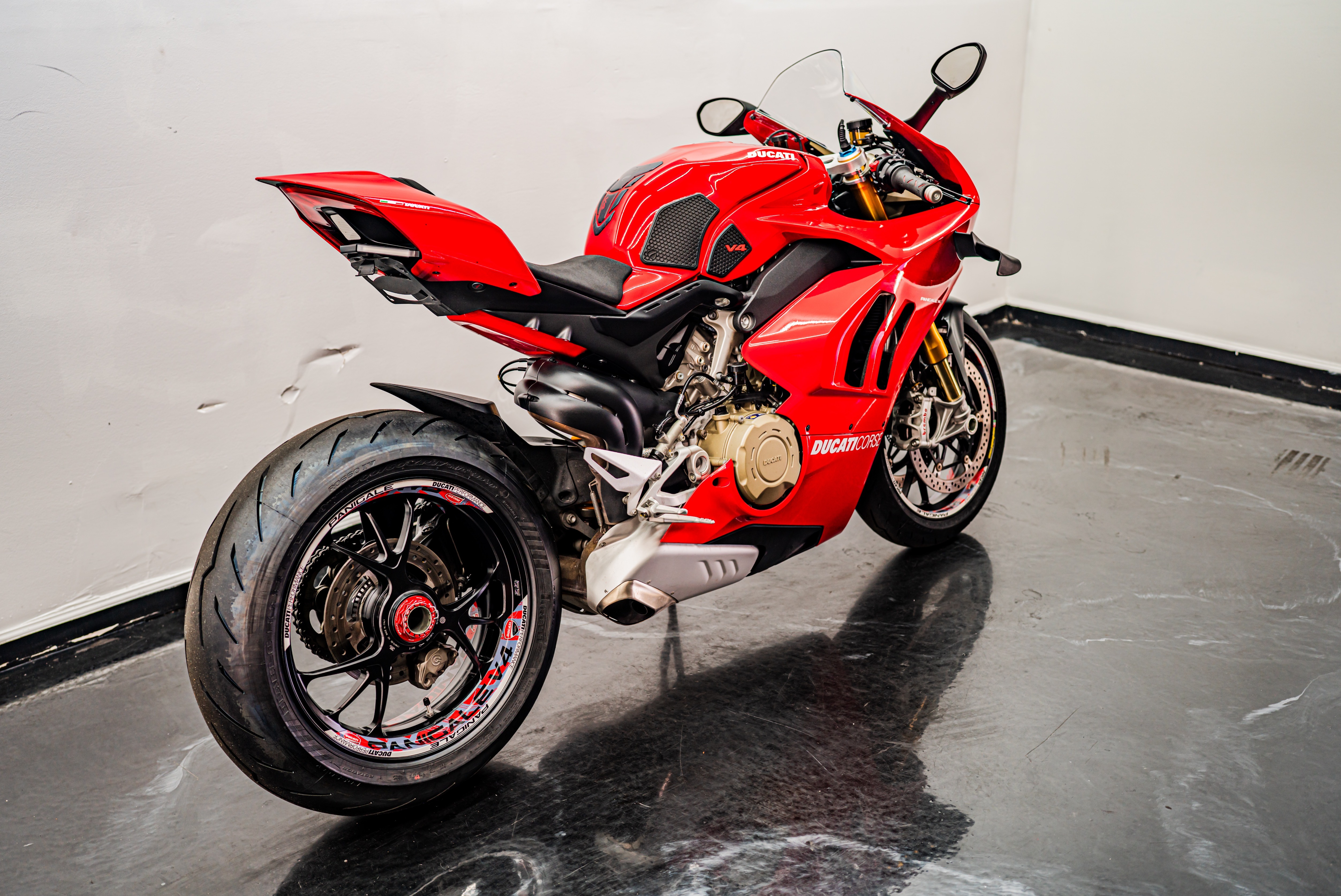

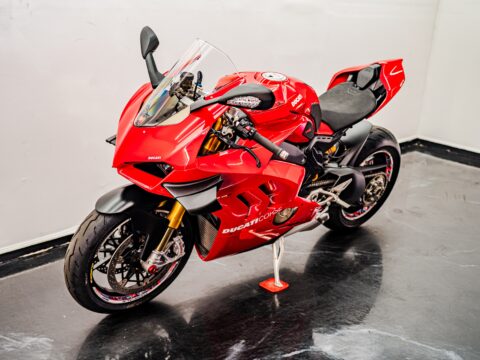

Finished in striking, signature Ducati Red, this immaculate, pre-owned Italian masterpiece has just 3,400 miles on the odometer. Boasting cutting-edge aerodynamic upgrades, a lighter race-flex chassis, and the legendary active Öhlins electronic suspension, it is fully primed to drop your lap times and command attention wherever it rolls.

Comprehensive Technical Specifications & Mechanical Metrics

MotoGP-Derived Engine & Powertrain

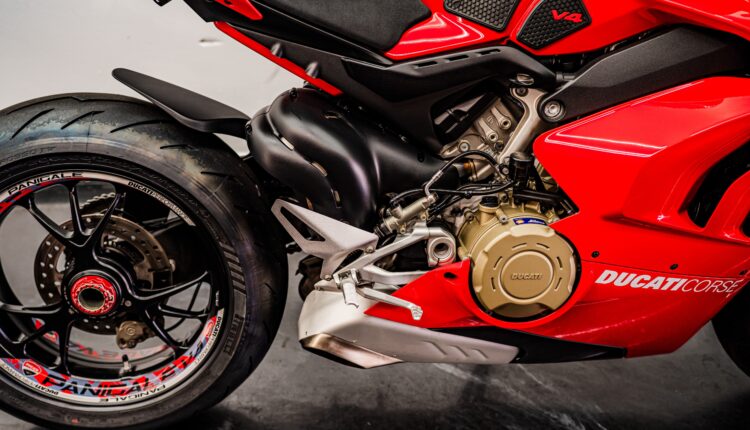

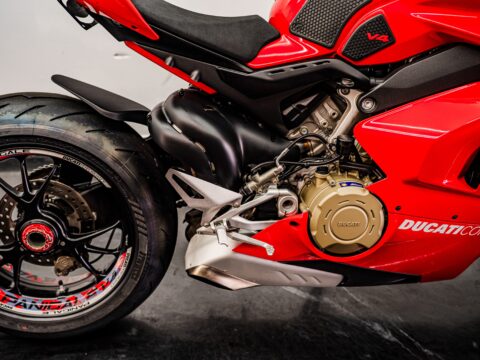

• Engine Type: Desmosedici Stradale  V4, rearward-banked.

• Valves: Desmodromic timing system, 4 chain-driven valves per cylinder, 16-valve DOHC

• Displacement: 1,103 cc

• Horsepower: 214 hp (157.5 kW) @ 13,000 rpm

• Torque: 91.5 lb-ft (124 Nm) @ 10,000 rpm

• Bore x Stroke: 81 x 53.5 mm

• Compression Ratio: 14.0:1

• Crankshaft Tech: Counter-rotating crankshaft (rotates opposite to the wheels to compensate for gyroscopic effect, significantly sharpening turn-in agility while reducing front wheel lift under hard acceleration)

• Firing Order: “Twin Pulse” ignition sequence duplicating the distinct mechanical roar and power delivery of the MotoGP Desmosedici

• Fuel Induction: Electronic fuel injection system with dual injectors per cylinder; full Ride-by-Wire elliptical throttle bodies with track-dedicated torque-mapping settings

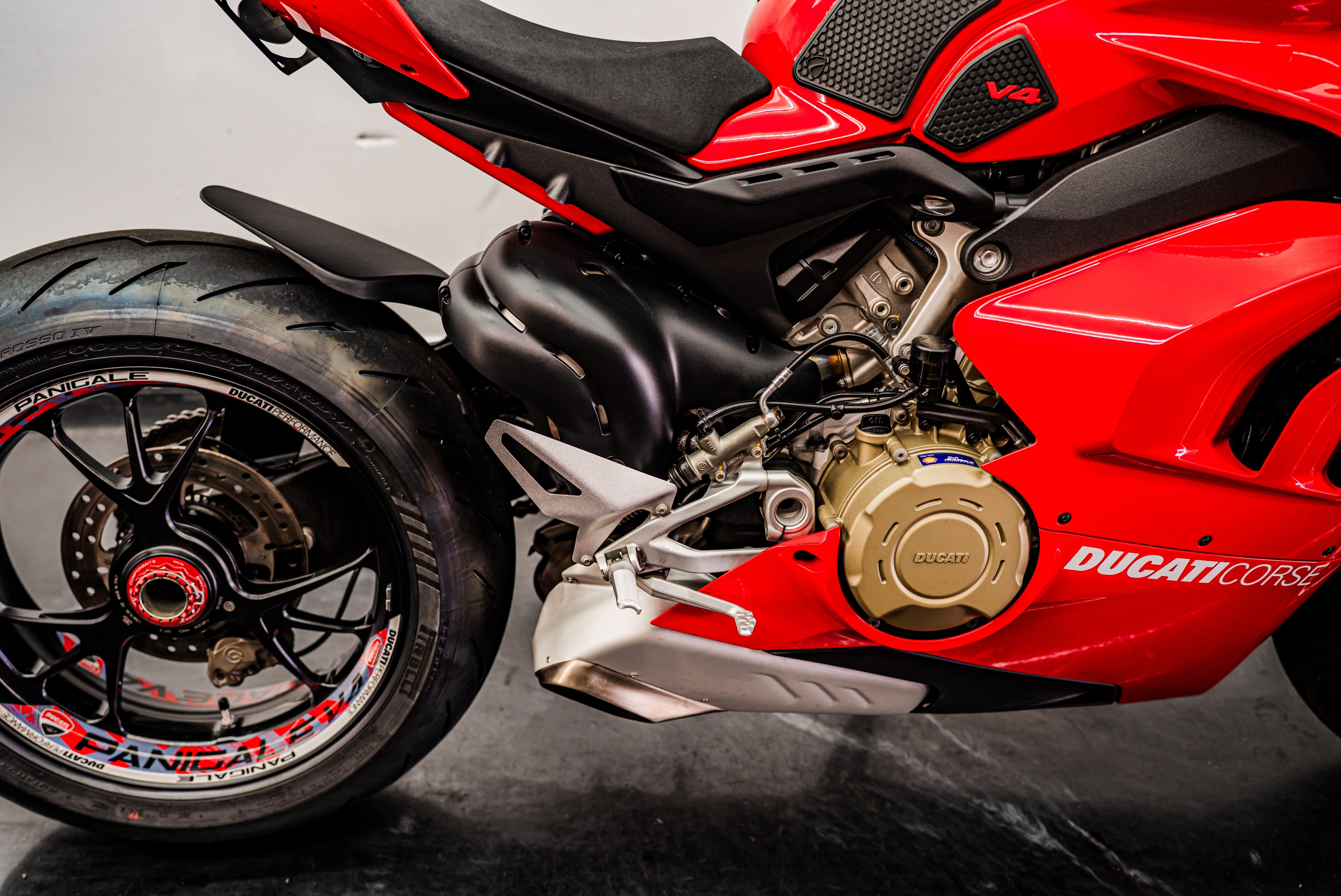

• Exhaust Layout: 4-2-1-2 system lightweight configuration with 2 catalytic converters and 2 lambda probes

Drivetrain & Gearbox

• Transmission: 6-speed manual gearbox with Ducati Quick Shift (DQS) up/down EVO 2

• Primary Drive: Straight cut gears; Ratio 1.80:1

• Final Drive: Premium chain; Front sprocket 16; Rear sprocket 41

• Clutch: Hydraulically controlled slipper and self-servo wet multiplate assembly (prevents rear-wheel hop during aggressive track downshifts)

Chassis, Suspension & Balance

• Main Frame: “Front Frame” technology with optimized Ducati Corse SBK-championship stiffness specifications; features precision machined sides to enhance front-end “feel” at extreme lean angles while lowering tire stress

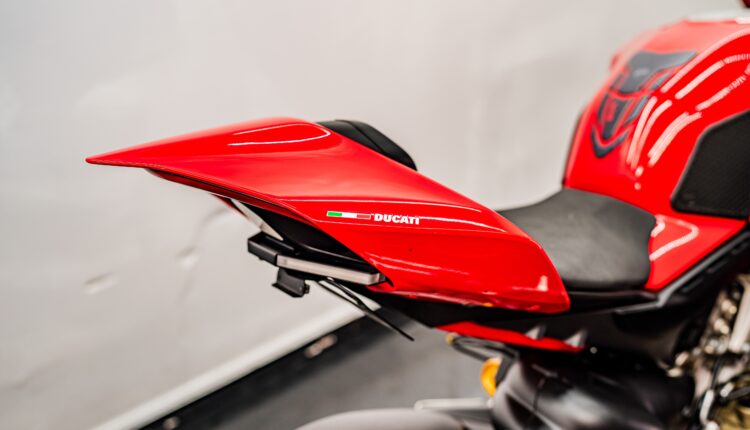

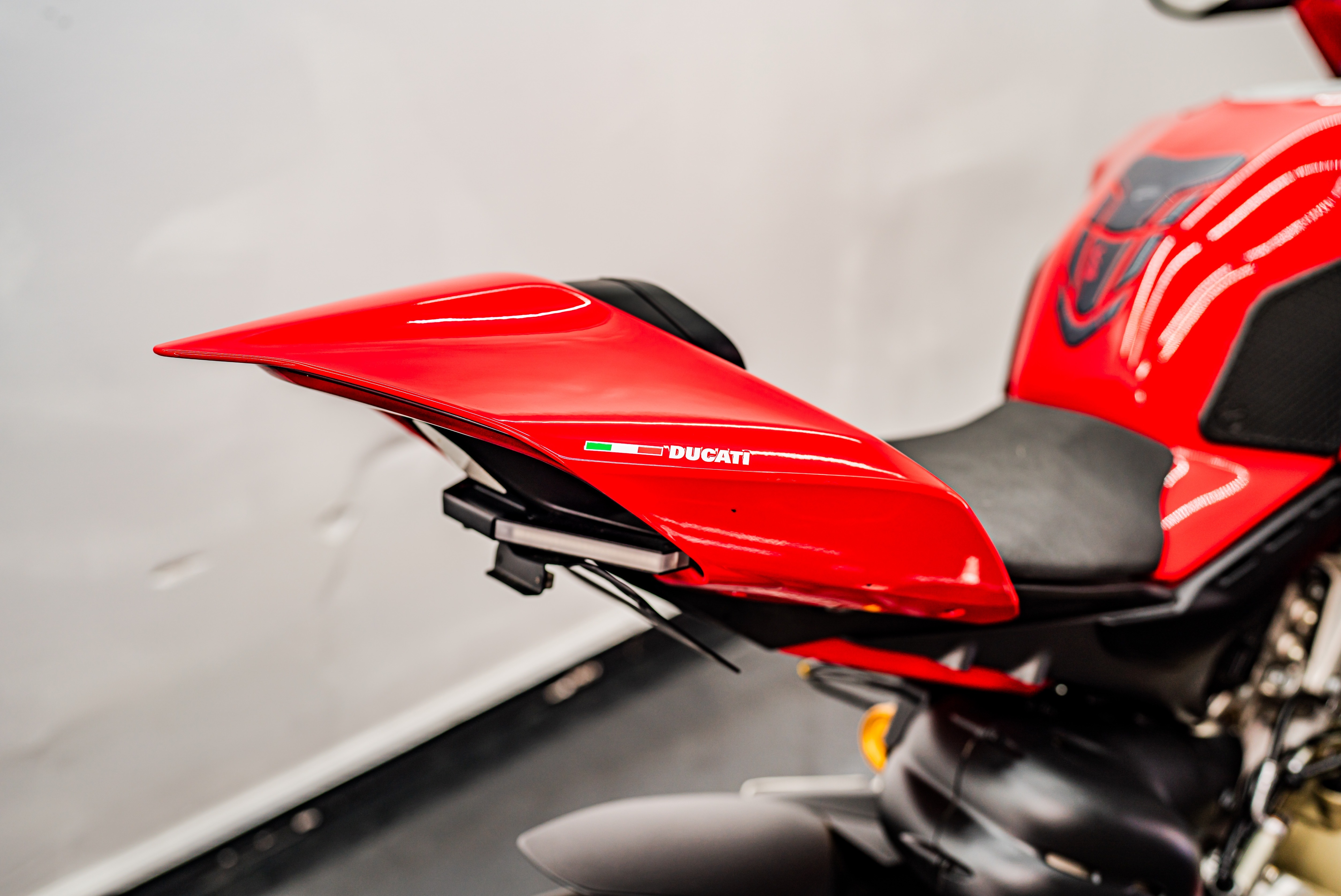

• Sub-Frames: Ultra-lightweight magnesium front sub-frame paired with a shell-cast aluminum seat sub-frame bolted to the rear cylinder head

• Swingarm: Signature single-sided aluminum swingarm

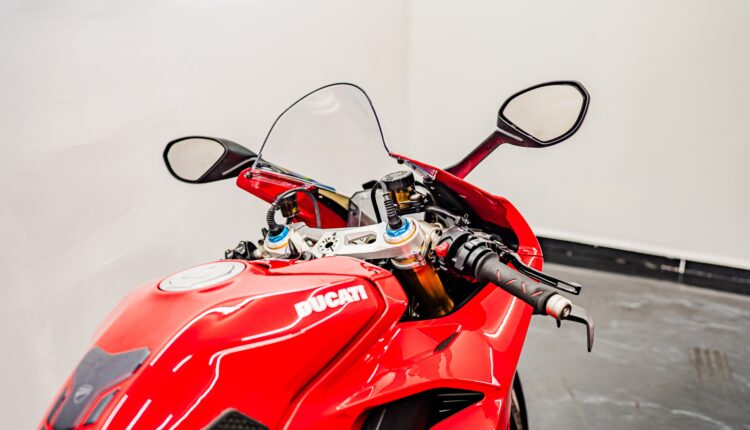

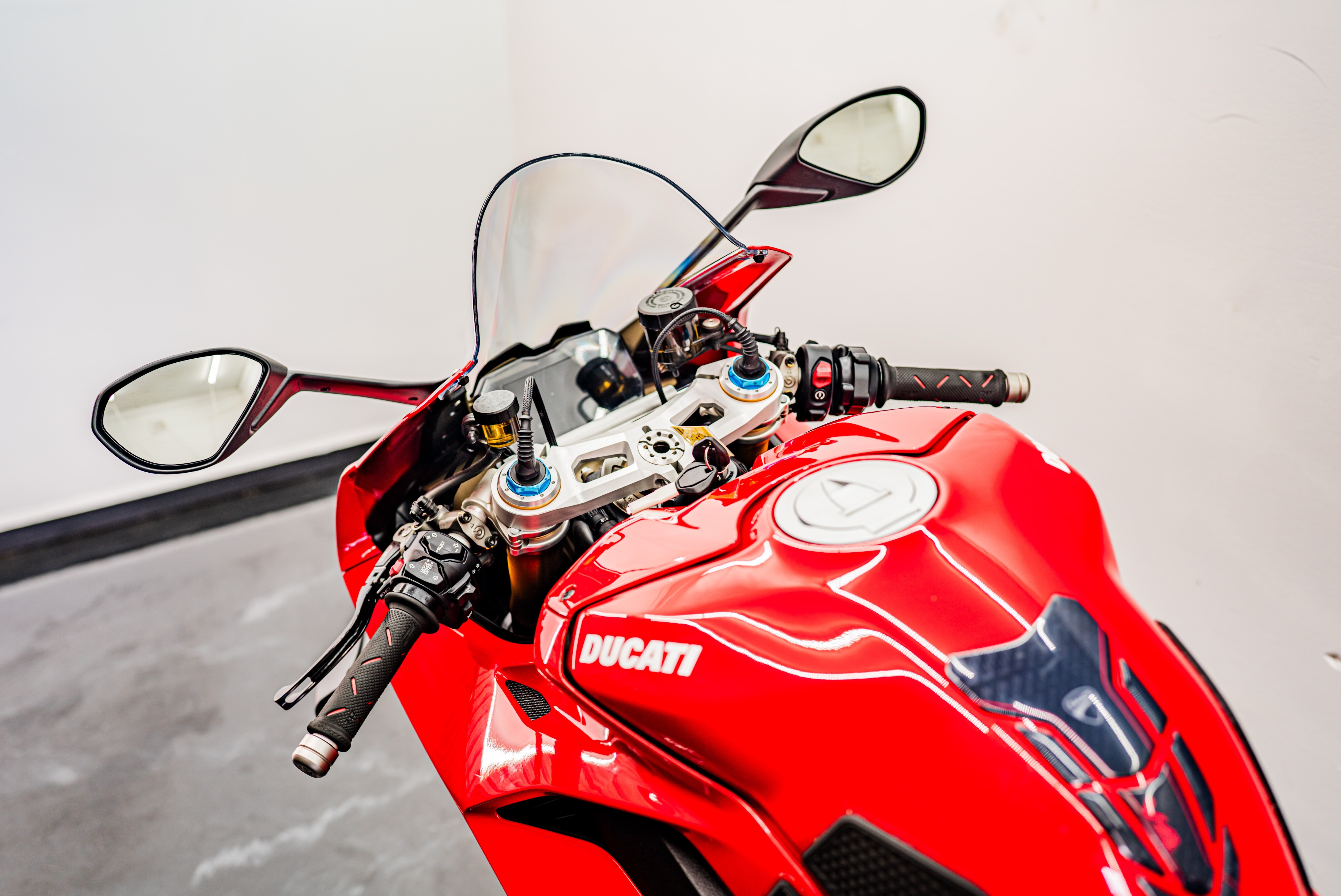

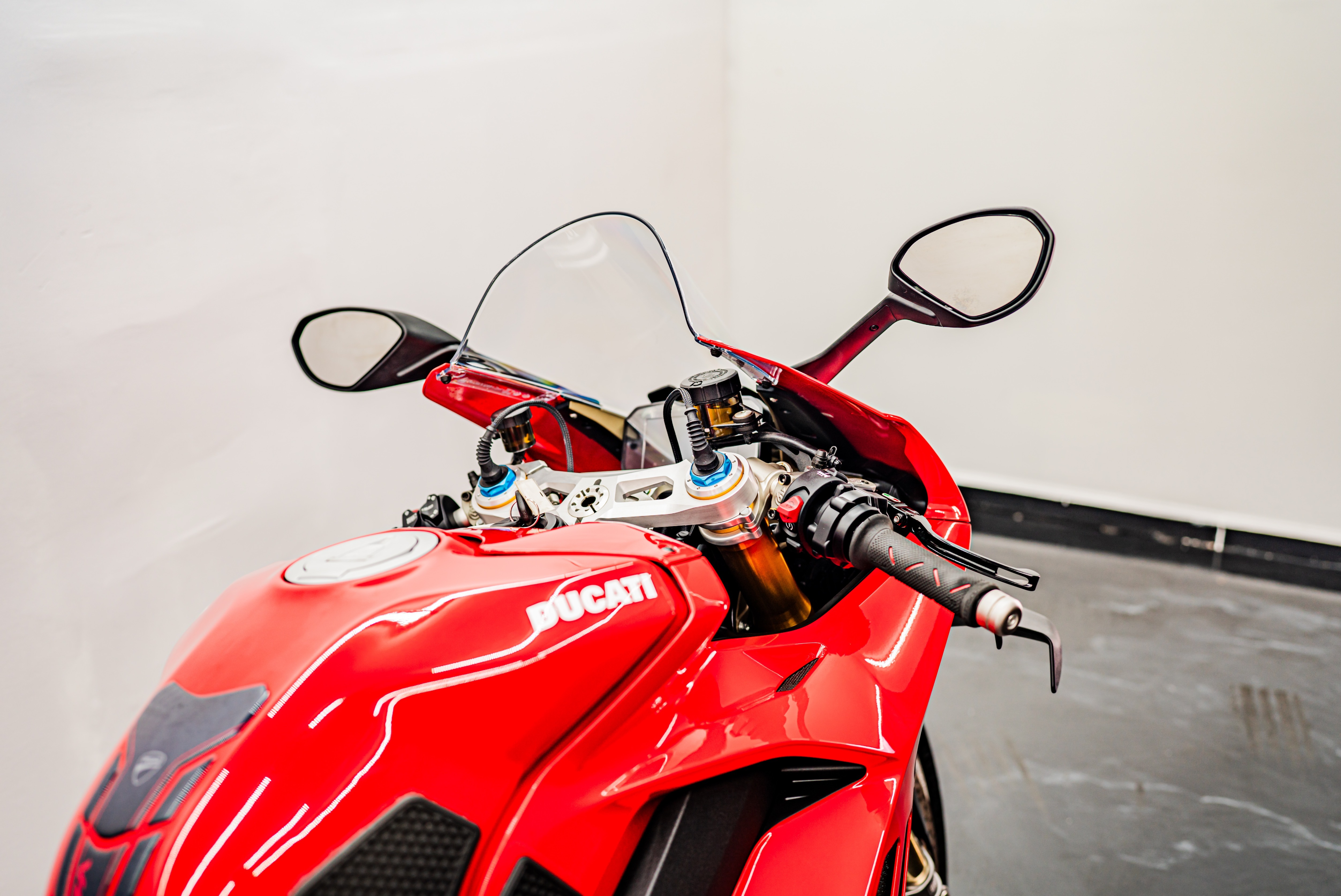

• Front Suspension: 43mm Öhlins NIX-30 upside-down telescopic forks with TiN treatment; fully controlled by the second-generation Öhlins Smart EC 2.0 event-based electronic system | Travel: 4.72 in. (120 mm)

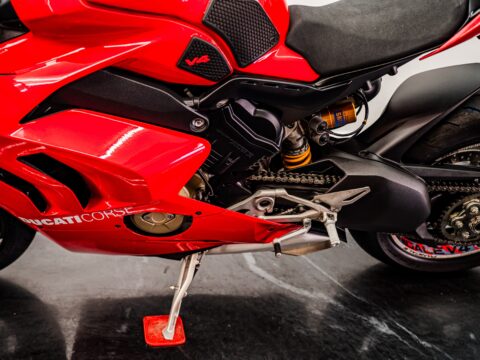

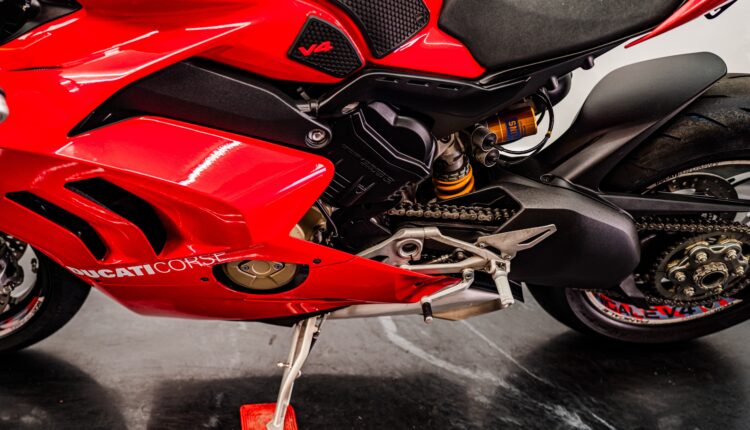

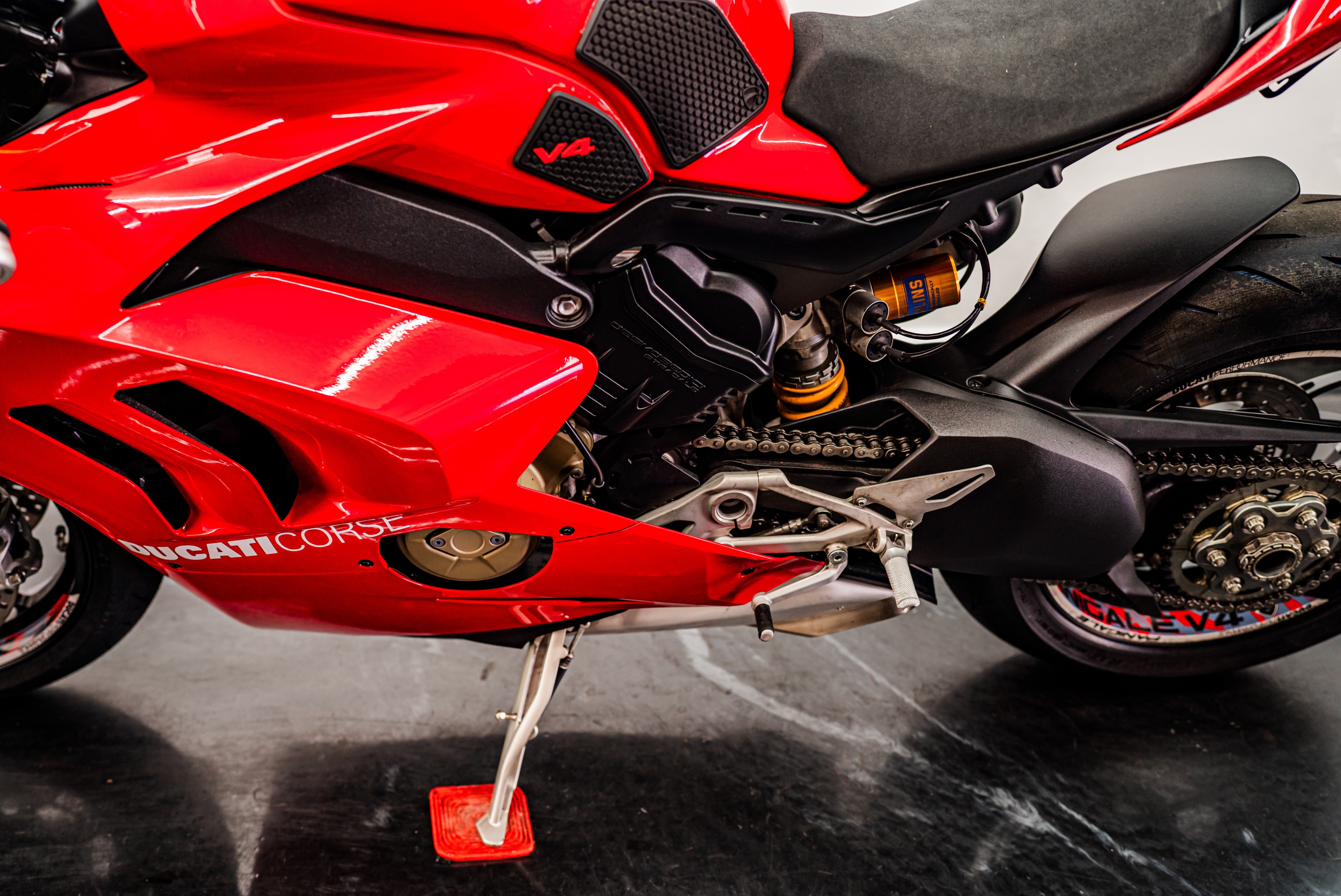

• Rear Suspension: Fully adjustable Öhlins TTX36 monoshock unit managed by the active Öhlins Smart EC 2.0 suite | Travel: 5.1 in. (130 mm)

• Steering Damper: Öhlins event-based active electronic steering damper

• Chassis Geometry: Rake: 24.5° | Trail: 3.93 in. (100 mm)

• Barycentre Optimization: 5mm higher barycentre (center of gravity) combined with an increased chain pull angle for enhanced anti-squat performance, making the bike swifter at drop-in and significantly more stable under hard acceleration

Brakes, Wheels & Contact Patch

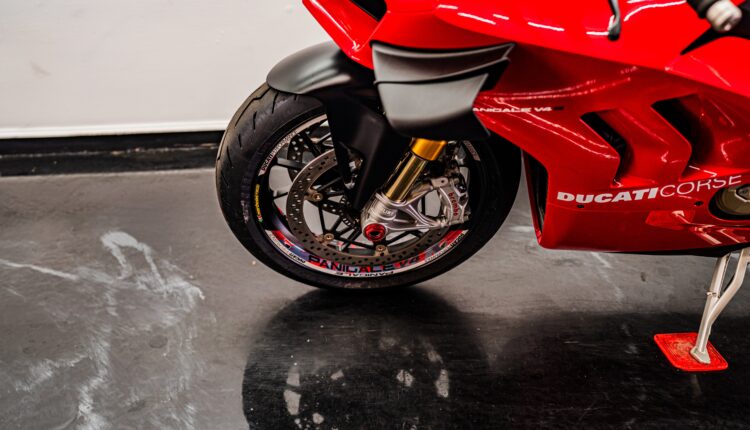

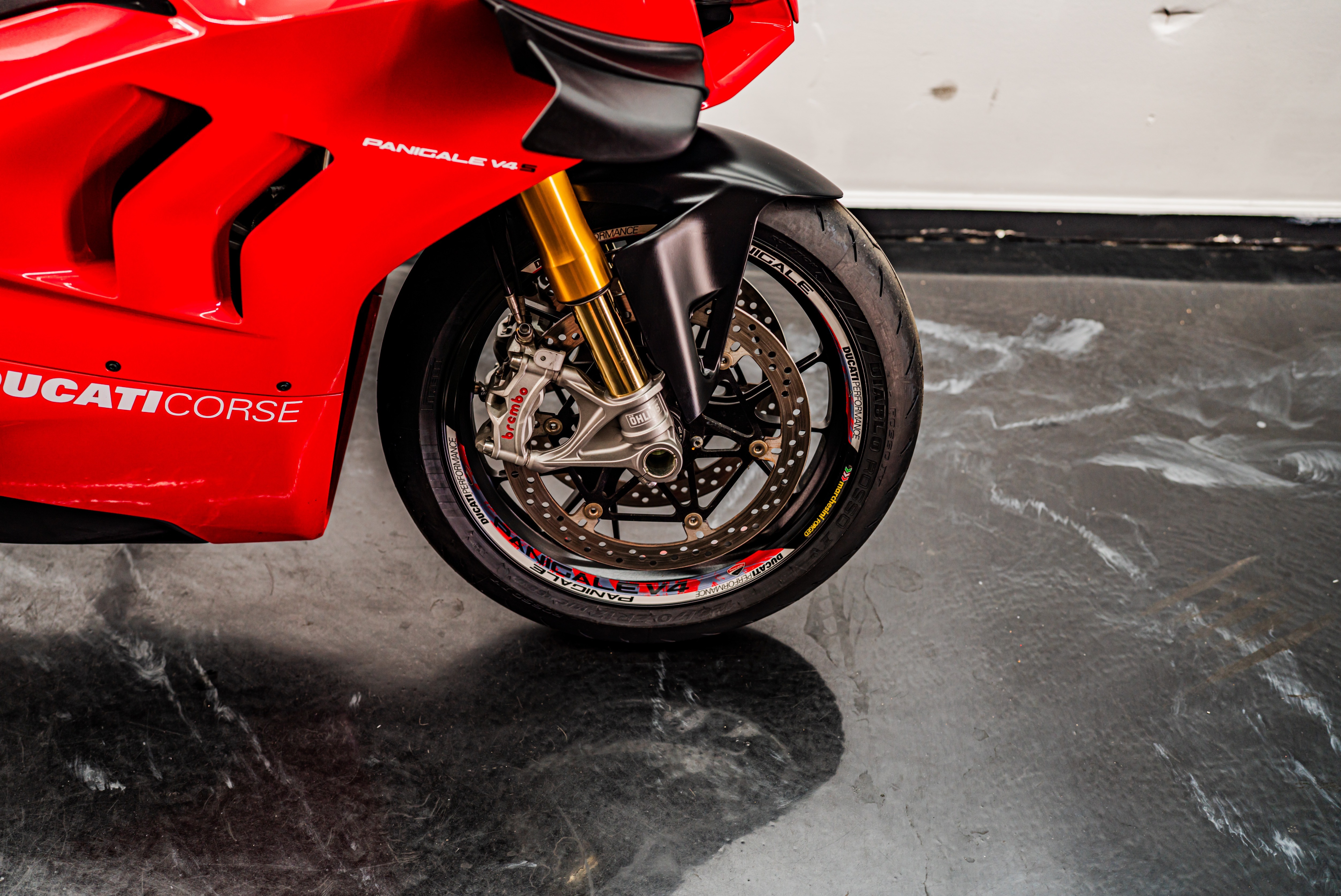

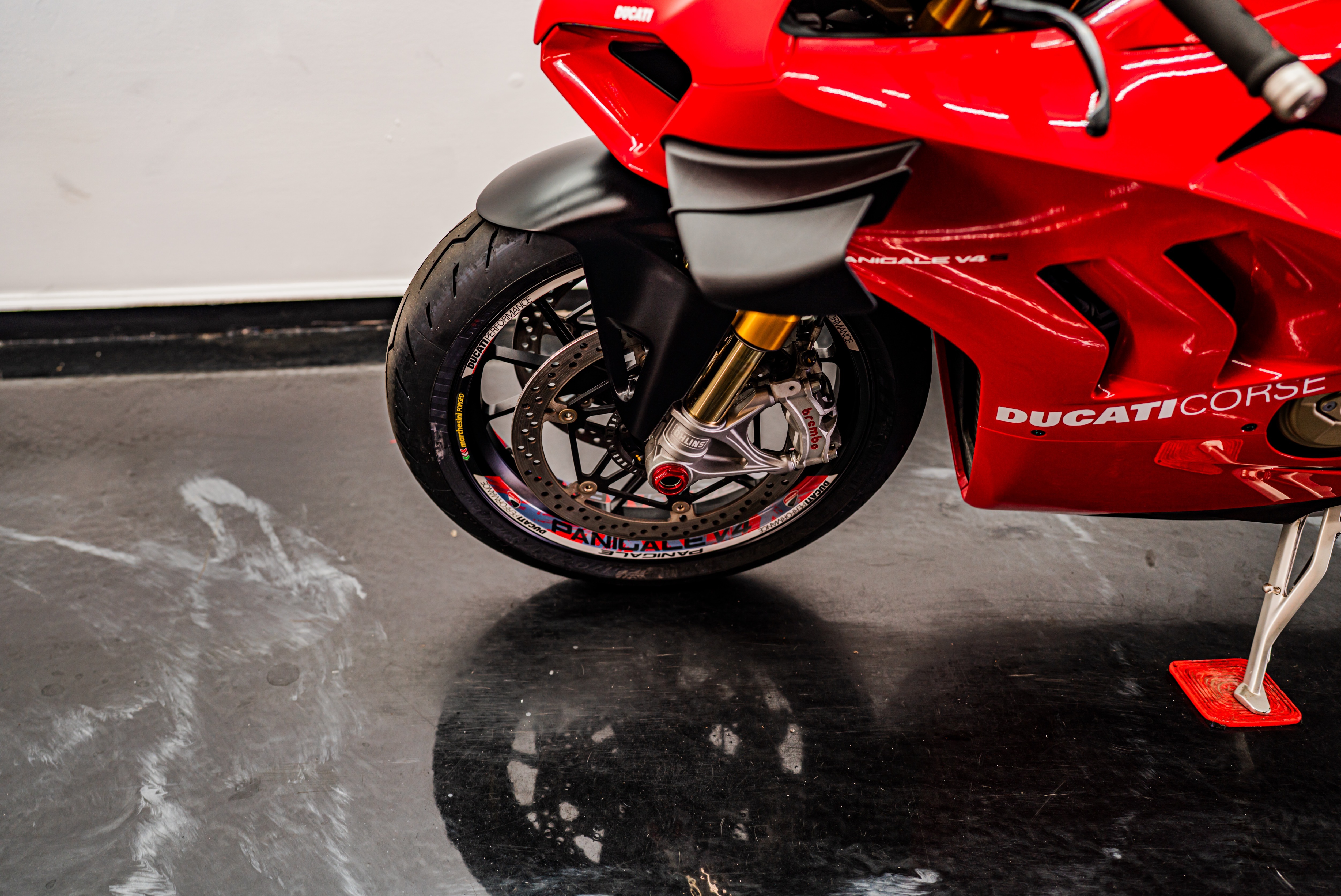

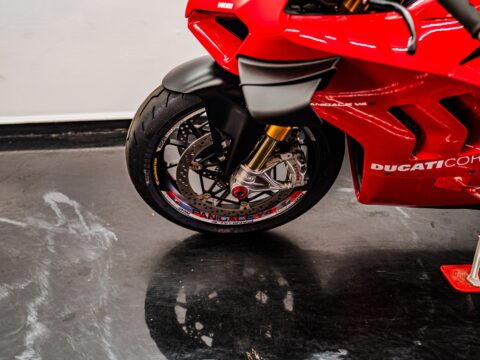

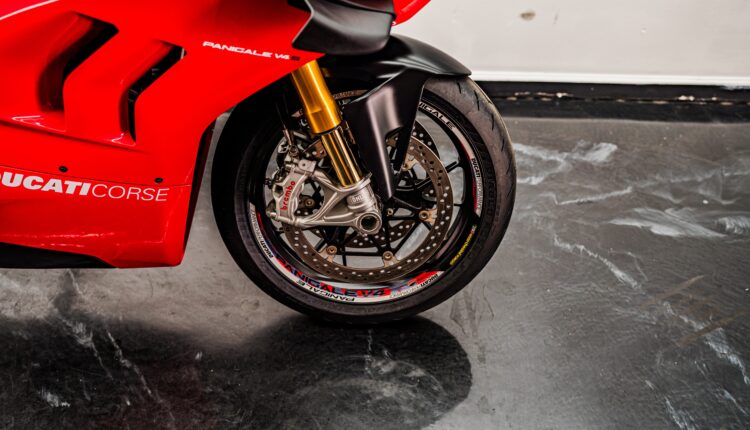

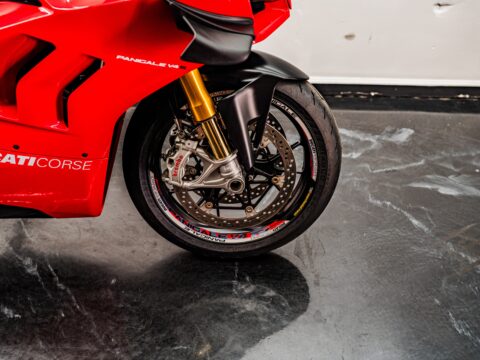

• Front Brakes: Dual 330 mm semi-floating discs clamped by radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston calipers backed by Bosch Cornering ABS EVO (Stylema calipers shed 70g per side while maximizing ventilation and hydraulic braking response)

• Rear Brakes: Single 245 mm disc paired with a floating 2-piston caliper

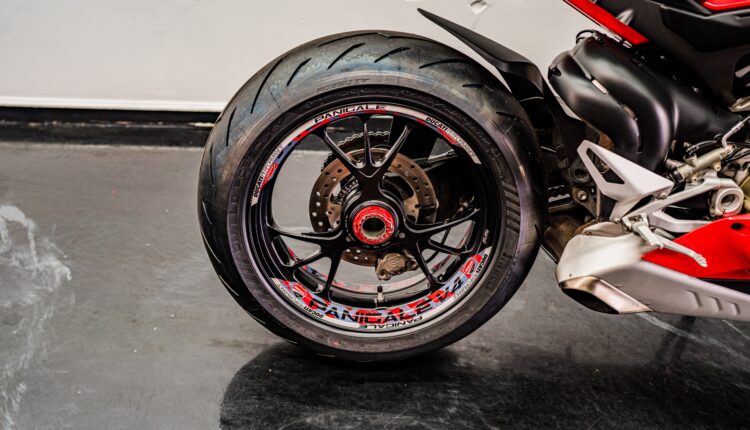

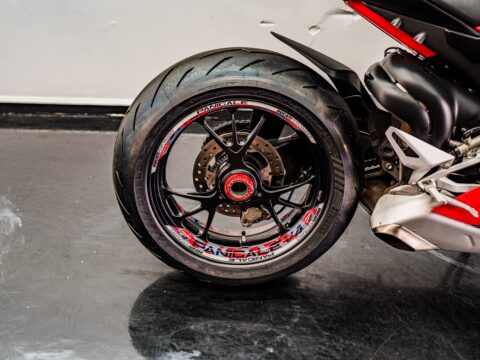

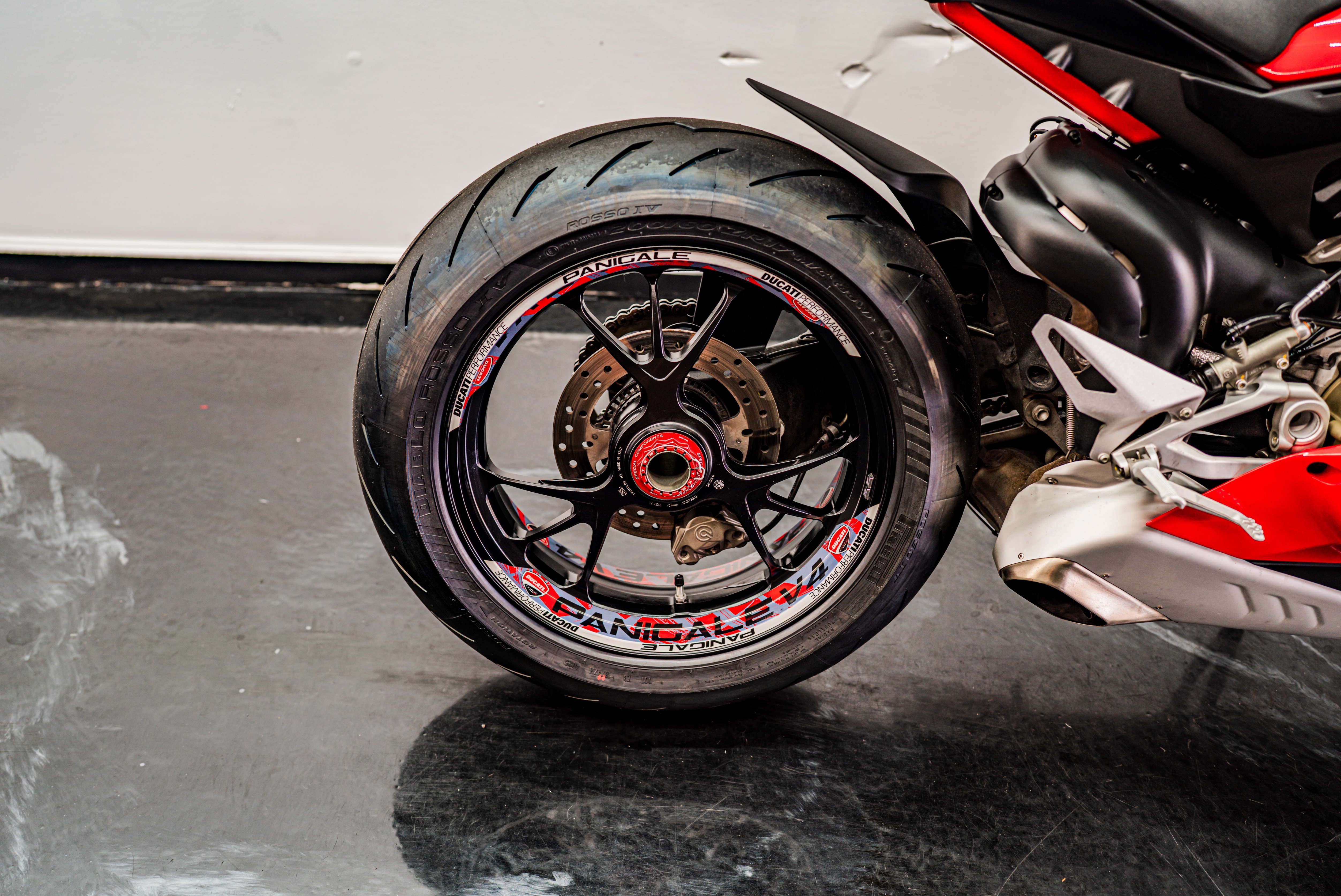

• Wheels: Ultra-premium 3-spoke forged aluminum alloy track wheels (Front: 3.50 x 17 in. | Rear: 6.00 x 17 in.)

• Tires: Pirelli Diablo Supercorsa SP high-performance racing replica tires (Front: 120/70 ZR17 | Rear: 200/60 ZR17 with WorldSBK SC2 shoulder compound for extreme lean-angle grip)

Dimensions & Capacities

• Dry Weight: 384 lbs (174 kg)

• Curb/Wet Weight: 430 lbs (195 kg) fully loaded

• Seat Height: 32.9 in. (835 mm)

• Wheelbase: 57.8 in. (1,469 mm)

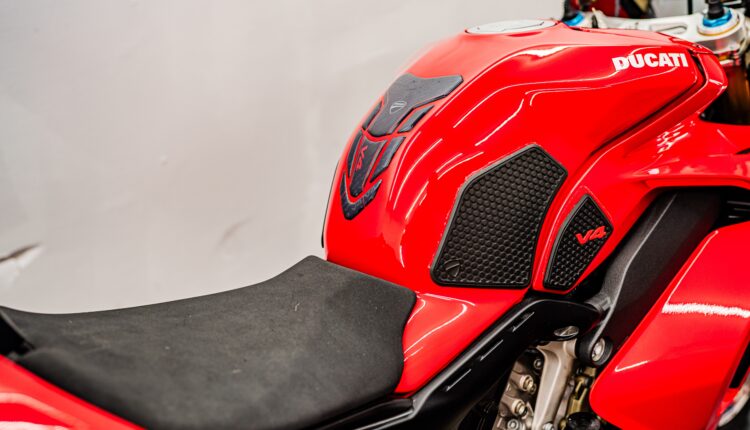

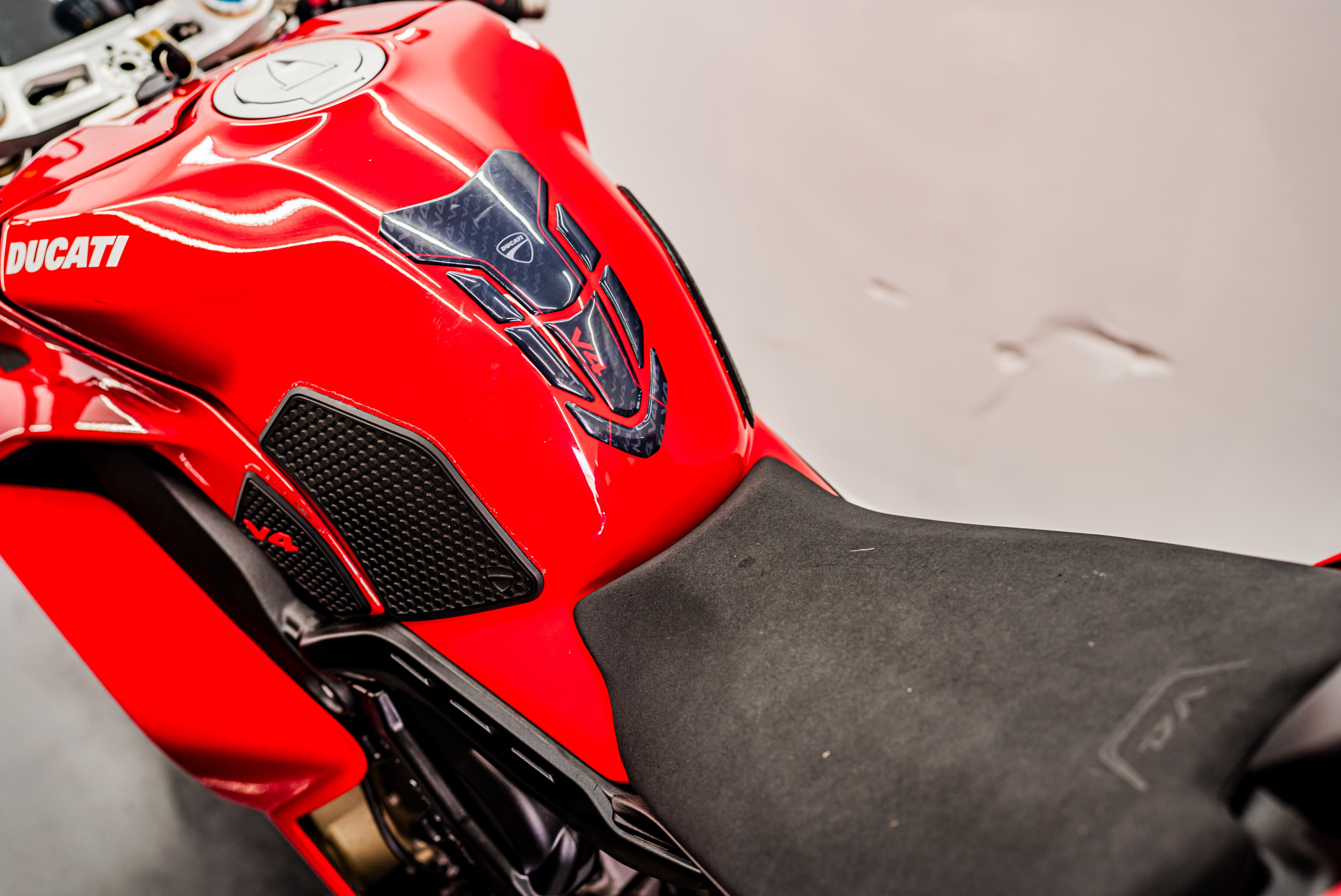

• Fuel Capacity: 4.23 US Gallons (16 Liters)

Aerodynamic Package by Ducati Corse

Co-developed alongside the official racing division, this Panigale V4 S mirrors the extreme aero profile of the track-only V4 R:

• Trapezoidal Monoplane Airfoils: Fiberglass-reinforced thermoplastic winglets generate 66 lbs (+30 kg) of absolute downforce at 167 mph (270 kph). This keeps the front wheel planted, mitigates wheel-up tendencies, and bolsters stability during deep corner entries.

• High-Aero Plexiglas Screen: Taller, aggressively angled wind shield protecting the rider’s helmet and shoulders down long straights.

• Widened Fairings: Nose and lateral fairings expanded by +38 mm per side to lower arm drag and isolate the rider from high-speed turbulence.

• High-Velocity Air Vents: Reworked cooling gills increasing air extraction throughput across the water radiator (+6%) and oil radiator (+16%).

Elite Electronics Suite & Rider Assists

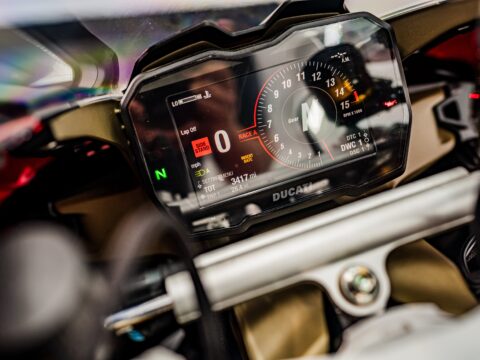

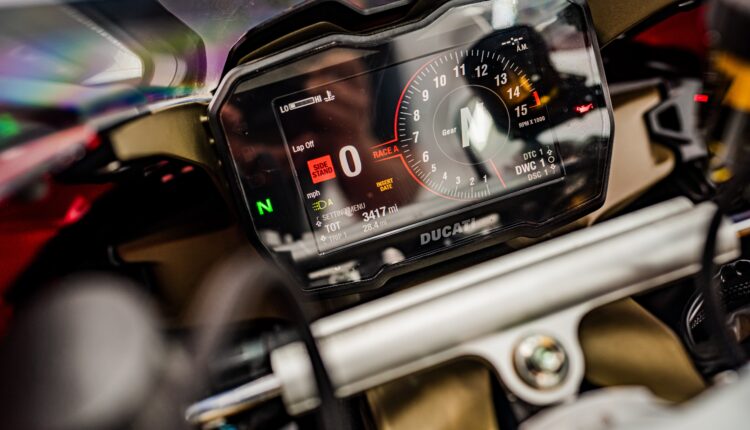

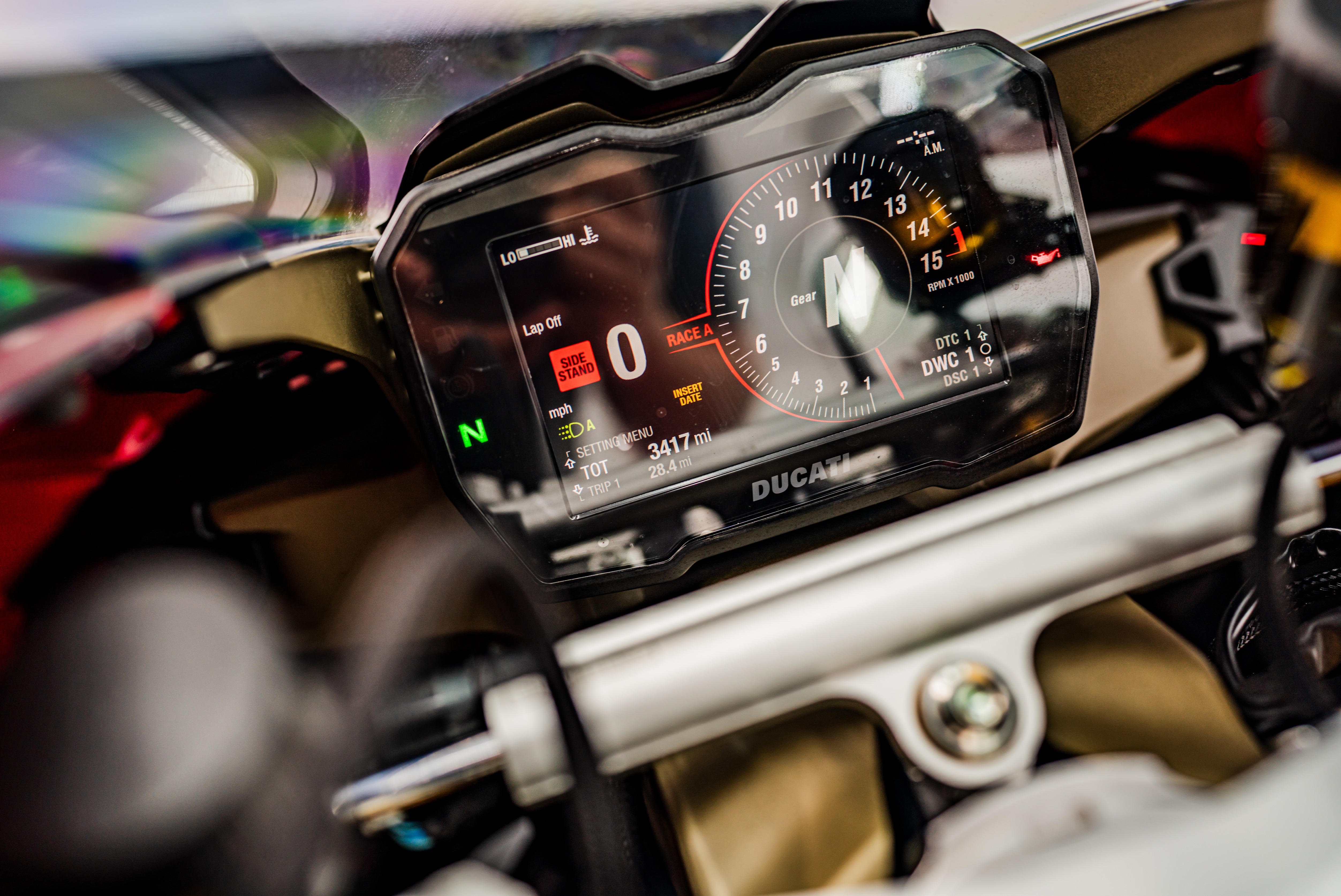

Managed entirely through a high-definition, 5-inch full-TFT color display dashboard (800xRGBx480 resolution) with interchangeable “Track” and “Road” layouts and custom quick-adjustment menus:

• 6-Axis Bosch IMU Inertial Platform: Instantly samples roll, yaw, and pitch angles to control the following active electronic rider aids:

  • ABS Cornering EVO: 3-level selection logic. Level 1 isolates anti-lock to the front wheel only while maintaining cornering control for aggressive track trail-braking.

  • Ducati Traction Control (DTC) EVO 2: MotoGP GP18-derived predictive wheelspin software that intercepts losses of grip earlier for faster, smoother out-of-the-corner power delivery.

  • Ducati Slide Control (DSC): Coordinates torque delivery based on slide angle, letting riders drift out of bends safely under extreme track loads.

  • Ducati Wheelie Control (DWC) EVO: Advanced front-wheel lift manager matching power delivery with maximum vehicle forward acceleration.

  • Ducati Power Launch (DPL): 3-level launch assistance system that stabilizes engine RPMs and monitors traction for lightning-fast hole shots.

  • Engine Brake Control (EBC) EVO: Variable electronic engine braking system that adjusts throttle aperture during aggressive deceleration to balance rear-wheel load.

  • Ducati Electronic Suspension (DES) EVO: Offers a manual “Fixed” mode (32 virtual clicks of adjustment) or an automatic “Dynamic” event-based mode that alters compression and rebound on the fly in response to real-time braking, cornering, and acceleration.

⚠️ This weapon won’t sit. A flawless, low-mileage 2021 Ducati Panigale V4 S packed with authentic MotoGP engineering and a pristine look is a rare find on the pre-owned market.
